Infinity Connector

An Infinite Number of Connections

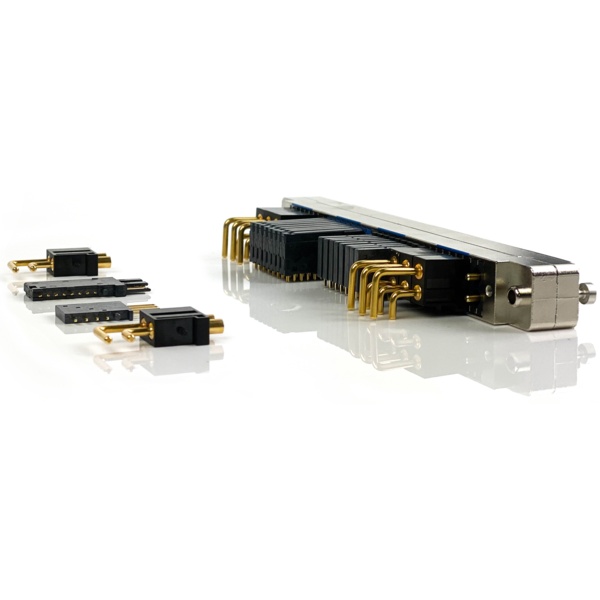

VPC's latest high speed technology allows for concerns about cycle life and lost time due to PCB soldering and changeout to be a thing of the past. The unique design of VPC's VTAC, QuadraPaddle, and Micro Power SIM inserts allows for changeout and replacement of pass-thru inserts while preserving right-angle connections to the PCB.  VPC's SIM module offers up to 34 positions and allows for mixed input/output combinations.

For questions about the Infinity Connector or any VPC product, please contact a Field Application Engineer.

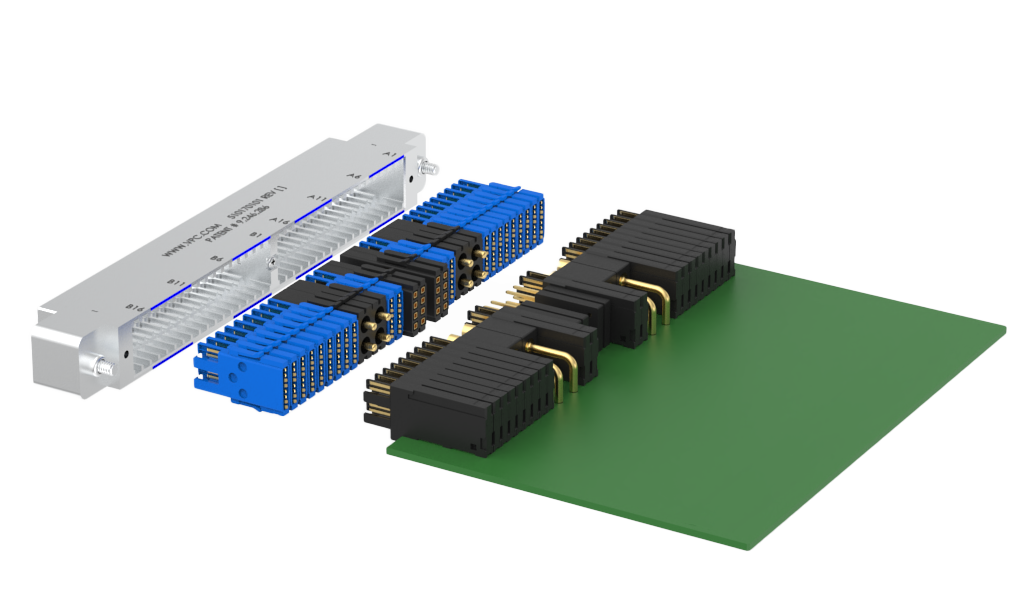

Sample VTAC Configuration




Piece-by-Piece




Specifications

VTAC

Operating Voltage & Current 3 amps cont ( 350v max)
Contact Resistance 30 mOhms max
Insulation Resistance 1000 MOhms min
Dielectric Withstanding 1050 VDC min
Mating Force 0.6 lb per insert
Contact Plating 50 µ" Au over 100µ" Ni
Data Rate 10+ Gpbs/diff pair (rt angle)
Crosstalk  -30 dB min
Impedance 100+/-10 Ohms/diff pair
Insert Material

Outer Shell-LCP
Male Contact- Alloy 7025


QuadraPaddle

Operating Voltage & Current 5 amps max continuous (600V max)
Contact Resistance 25 mOhms max
Insulation Resistance 5000 MOhms min
Dielectric Withstanding 1500 VDC min
Mating Force .24 lbs (109 g)
Contact Plating 30µ" Au over 100µ" Ni

Micro Power

Operating Voltage & Current 21 amps continuous
Contact Resistance 1.5 mOhms max
Dielectric Withstanding 1500 VDC min
Mating Force 1.23 lbs (558 g)
Contact Plating 30µ" Au over 100µ" Ni

For questions about the Infinity Connector or any VPC product, please contact a Field Application Engineer.



User Manual



Video



Accessory

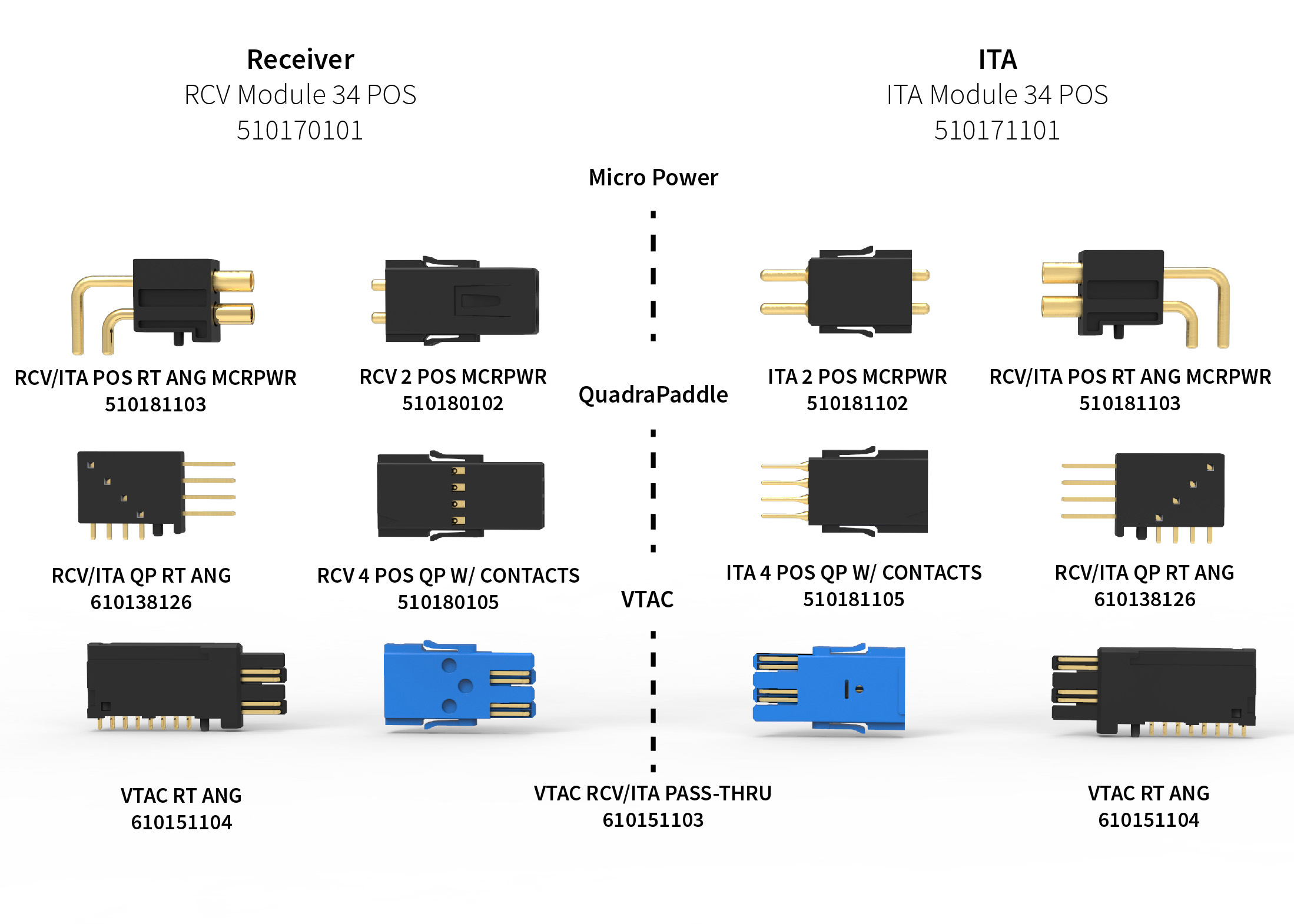

  • PCB Bracket Kit, SIM Module, Receiver/ITA, for PCB Mounting (Right Angle)

Insert - Micro Power

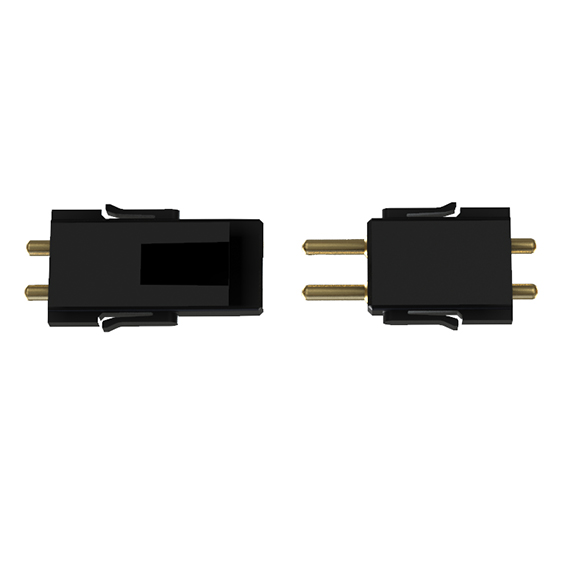

  • Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
    Micro Power, Insert, ITA, SIM, 2 Pos, 2 Slot

Insert - Micro Power/Micro Coax

  • Micro Power or Micro Coax, Insert, Receiver, SIM, 2 Pos, 2 Slot (not loaded)
    Micro Power or Micro Coax, Insert, ITA, SIM, 2 Pos, 2 Slot (not loaded)

Insert - QuadraPaddle

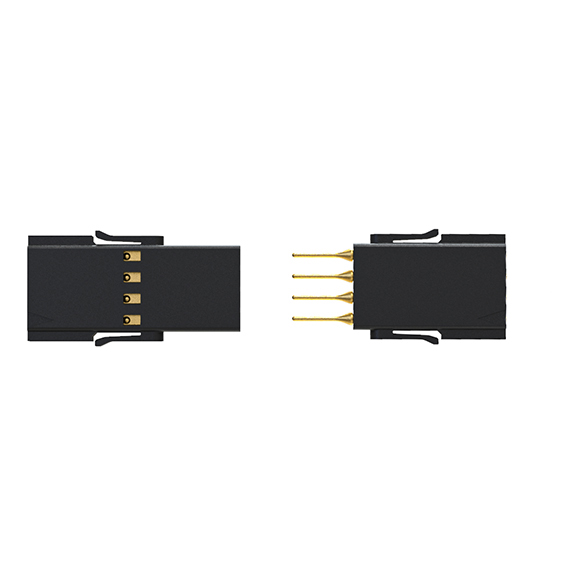

  • Signal, Insert, Receiver, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot
    Signal, Insert, ITA, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot

Insert - Right Angle

  • Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot
    Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot
    VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot

Insert - Vertical

  • VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos

Insert - VTAC

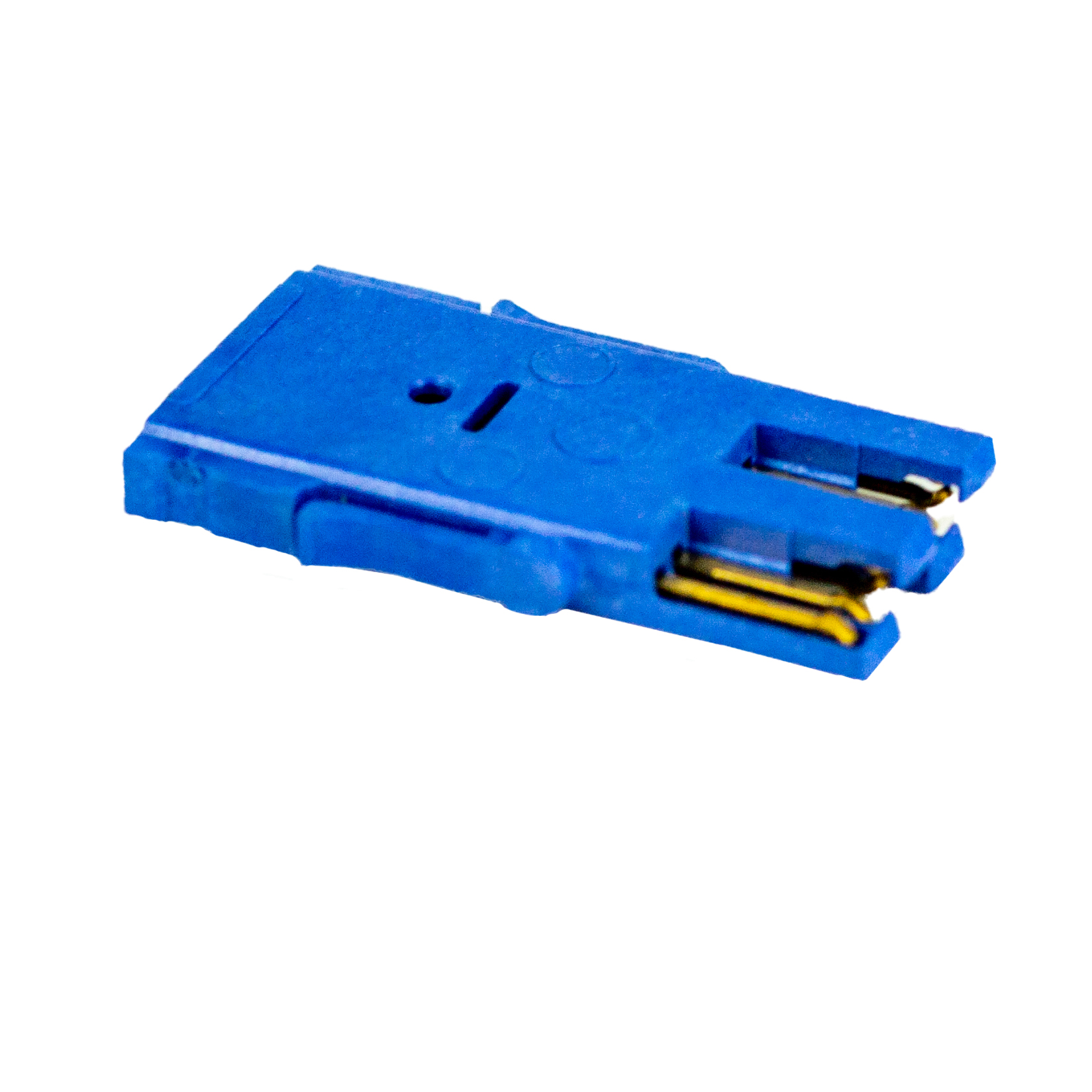

  • VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot

Insert Bundles

  • Signal, Insert Bundle, Receiver, QuadraPaddle, SIM, Right Angle and Pass-Thru
    Signal, Insert Bundle, ITA, QuadraPaddle, SIM, Right Angle and Pass-Thru
    VTAC, Insert Bundle, Receiver/ITA, SIM, Right Angle and Pass-Thru
    VTAC, Insert Bundle, Receiver/ITA, SIM,  Vertical Header and Pass-Thru

Module - 90 Series ITA

  • SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Module - 90 Series Receiver

  • SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

SIM Module Right Angle Kit

  • SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

Tool- Extraction

  • Tool, Extraction, VTAC, Receiver and ITA
