Snap-In-Module (SIM) Inserts

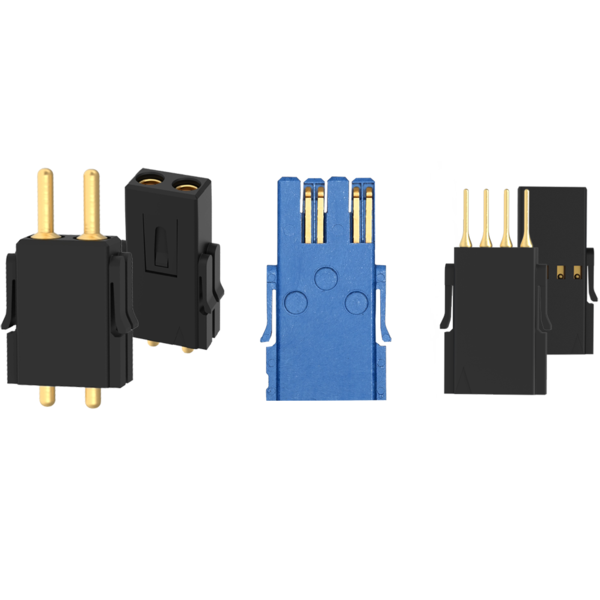

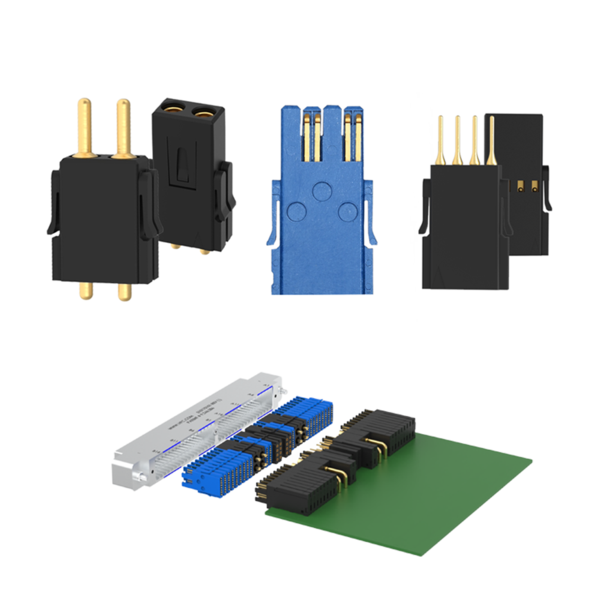

VPC's latest high-speed technology allows for concerns about cycle life and lost time due to PCB soldering and changeout to be a thing of the past. The unique design of VPC's VTAC, QuadraPaddle, and Micro Power/Coax SIM inserts allows for changeout and replacement of pass-thru inserts while preserving either right-angle or vertical connections to the PCB.

SIM Modules    INFINITE PCB CONNECTIONS    Wired SIM Solutions

For more information, contact a Field Application Engineer.

Insert - 20/26 GHz Coax / 75 Ohm HD

  • 510180110
    20/26 GHz Coax, Insert, Receiver, SIM, 2 POS, 6 Slot (not loaded)
    510181110
    20/26 GHz Coax, Insert, ITA, SIM, 2 POS, 6 Slot (not loaded)

Insert - Micro Power

  • 510180102
    Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
    510181102
    Micro Power, Insert, ITA, SIM, 2 Pos, 2 Slot

Insert - Micro Power/Micro Coax

  • 510180104
    Micro Power or Micro Coax, Insert, Receiver, SIM, 2 Pos, 2 Slot (not loaded)
    510181104
    Micro Power or Micro Coax, Insert, ITA, SIM, 2 Pos, 2 Slot (not loaded)

Insert - QuadraPaddle

  • 510180101
    Signal, Insert, Receiver, QuadraPaddle, SIM, 1 Slot (not loaded- for discrete wiring only)
    510180105
    Signal, Insert, Receiver, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot
    510181101
    Signal, Insert, ITA, QuadraPaddle, SIM, 1 Slot (not loaded- for discrete wiring only)
    510181105
    Signal, Insert, ITA, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot

Insert - Right Angle

  • 510181103
    Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot
    610138126
    Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot
    610151104
    VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot

Insert - Thermocouple

  • 510180111
    Thermocouple, Insert, Receiver, SIM, 8 Pos, 3 Slot (not loaded)
    510181111
    Thermocouple, Insert, ITA, SIM, 8 Pos, 3 Slot (not loaded)

Insert - Vertical

  • 610151107
    VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos

Insert - VTAC

  • 610151103
    VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot

Insert Bundles

  • 510180107
    Signal, Insert Bundle, Receiver, QuadraPaddle, SIM, Right Angle and Pass-Thru
    510181107
    Signal, Insert Bundle, ITA, QuadraPaddle, SIM, Right Angle and Pass-Thru
    610151106
    VTAC, Insert Bundle, Receiver/ITA, SIM, Right Angle and Pass-Thru
    610151108
    VTAC, Insert Bundle, Receiver/ITA, SIM,  Vertical Header and Pass-Thru

Module Insert - i2 MX ITA

  • 510144001
    Adapter Rails (for High Speed Inserts), i2MX, ITA, 88 Pos, 11 Slot

Module Insert - i2 MX Receiver

  • 510143001
    Adapter Rails (for High Speed Inserts), i2MX, Receiver, 88 Pos, 11 Slot
