9025 Rack Mount

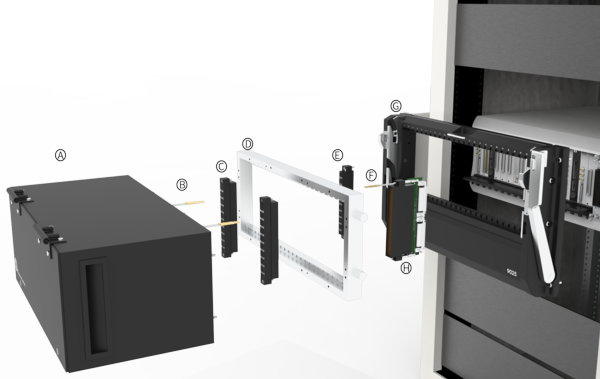

Rack Mount Exploded View

A. ITA Enclosure B. ITA Patchcords C. ITA Modules
D. ITA Frame E. Receiver Modules F. Receiver Patchcords
G. Receiver Frame H. PCB Adapter

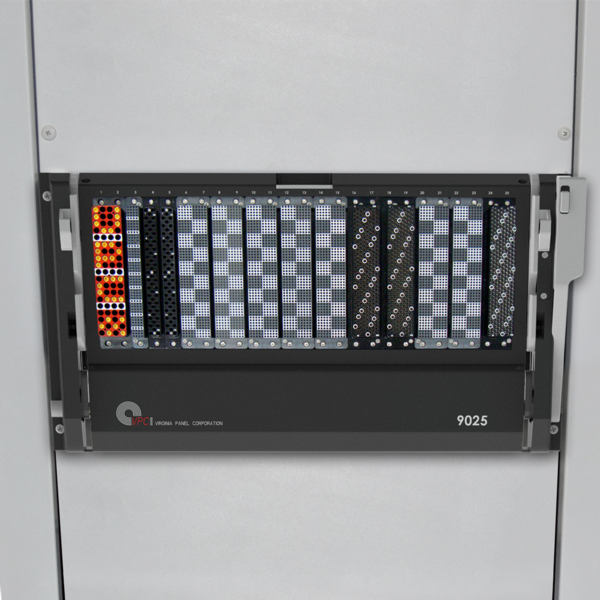

Rack Mount

VPC rack mountable receivers like the 9025 meet the standards which are essential to support advanced mass interconnect requirements. Connector modules can be intermixed to establish custom interfaces which are ideal for functional and system testing applications.

User Manual

Video

Receiver

  • 310104420
    Receiver, 9025, 25 Module, Single Tier
    310104431
    Receiver, 9025, 25 Module, EMI Gasket

ITA

  • 410104111
    ITA, 9025, 25 Module, Single Tier
    410104306
    ITA, 9025, 25 Module, Single Tier, for EMI
    410104577
    ITA, 9050, 50 Module, Double Tier, for EMI

Protective Cover

  • 310113163
    Protective Cover, 9025, 9025TR, 9025 VXI, Receiver
    410112578
    Protective Cover, 9025, 9025VXI & 9025TR, ITA

ITA Enclosure

  • 410104304
    ITA, 9025, 25 Module, EMI, with 8" Enclosure
    410104580
    ITA, 9050, 50 Module, Double Tier, EMI, with 8" Enclosure
    410112198
    Enclosure, 9025, Hinged Cover,  4" Depth
    410112336
    Enclosure, 9050,  Hinged Cover, Incl. Adapter for 9025, 4" Depth

Module - 90 Series Receiver

  • 510104109
    Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    510104120
    Mini Coax, Module, Receiver, 90 Series, 19 Position
    510104123
    Mini Power, Module, Receiver, 90 Series, 19 Position
    510104133
    Thermocouple, Module, Receiver, 90 Series, 64 Position
    510104134
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position
    510104135
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    510104136
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position
    510104149
    Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
    510104150
    Mini Coax, Module, Receiver, 90 Series, 76 Position
    510104187
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    510104203
    Coax, Module, Receiver, 18 Ghz, 90 Series, 8 Pos
    510104206
    Signal/Mini Power, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104224
    Coax, Module, Receiver, 40 GHz, 90 Series, 8 Position
    510104243
    Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104249
    Coax, Module, Receiver, 75 Ohm, 90 Series, 32 Position
    510104260
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions
    510104266
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions w/ Filter
    510104267
    Micro Power/ Micro Coax, Module, Receiver, 90 Series, 50 Positions
    510104276
    Vacuum-Pneumatic, Module, Receiver, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510104287
    Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
    510104289
    Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
    510104301
    Mini Coax, Module, Receiver, 90 Series, 37 Position
    510104306
    Signal/Micro Coax/Micro Power, Module, Receiver, TriPaddle, 90 Series, 77/8 Position
    510104307
    Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate
    510104319
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    510109315
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    510150115
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
    510150116
    Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
    510150130
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    510150136
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
    510150137
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
    510150147
    Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610 138 200 and 610 138 118)
    510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - 90 Series ITA

  • 510108101
    Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
    510108111
    Mini Coax, Module, ITA, 90 Series, 19 Position
    510108112
    Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    510108124
    Thermocouple, Module, ITA, 90 Series, 64 Position
    510108125
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    510108126
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position
    510108132
    Mini Coax, Module, ITA, 90 Series, 76 Position
    510108169
    Coax, Module, ITA, 40 GHz, 90 Series, 8 Position
    510108176
    Coax, Module, ITA, 18 GHz, 90 Series, 8 Pos
    510108179
    Coax, Module, ITA, 20/26 GHz/ 75 Ohm HD and 75 Ohm, 90 Series, 32 Position
    510108210
    Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108240
    Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position
    510108242
    Vacuum, Module, ITA, 90 Series, 2 Port Positions
    510108245
    Signal/Thermocouple, Module, ITA, TriPaddle , 90 Series, 84/12 Position
    510108251
    Vacuum, Module, ITA, 90 Series, 2 Port Positions, w/ M22.5x1.5 Tap
    510108262
    Micro Power / Micro Coax, Module, ITA, 90 Series, 50 Position
    510108263
    Micro Power/ Micro Coax, Module, ITA, 90 Series, 120 Positions
    510108264
    Vacuum-Pneumatic, Module, ITA, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510108276
    Mini Coax, Module, ITA, 90 Series, 37 Position
    510108281
    Signal / High Power, Module, ITA, TriPaddle, 90 Series, 6/6 Positions
    510151105
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
    510151106
    Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
    510151107
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
    510151124
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)
    510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Strain Relief Plate

  • 510109116
    Strain Relief Plate, Receiver, 90 Series
    510109296
    Strain Relief Plate, ITA, 90 Series
    510109298
    Strain Relief Plate, Receiver, 90 Series

PXI Chassis Mount Kit

  • 310113605
    Dual Chassis Mounting Kit, for mounting 2 PXI chassis together

Vertical Hinged Mounting Frame

  • 310113316
    Vertical Hinged Mounting Frame, 9025, 8U
    310113320
    Vertical Hinged Mounting Frame, 9025, 9U
