Innovative PCB Solutions

VPC provides engineered, finished, and quality tested cable assemblies to enable easier system configuration, promoting integration of Mass Interconnect systems with virtually any type of test and measurement instrumentation. Visit the Wire+ Configurator to see all the standard cable and adapter options VPC offers for your testing needs. Contact a Field Application Engineer for custom test requirements.

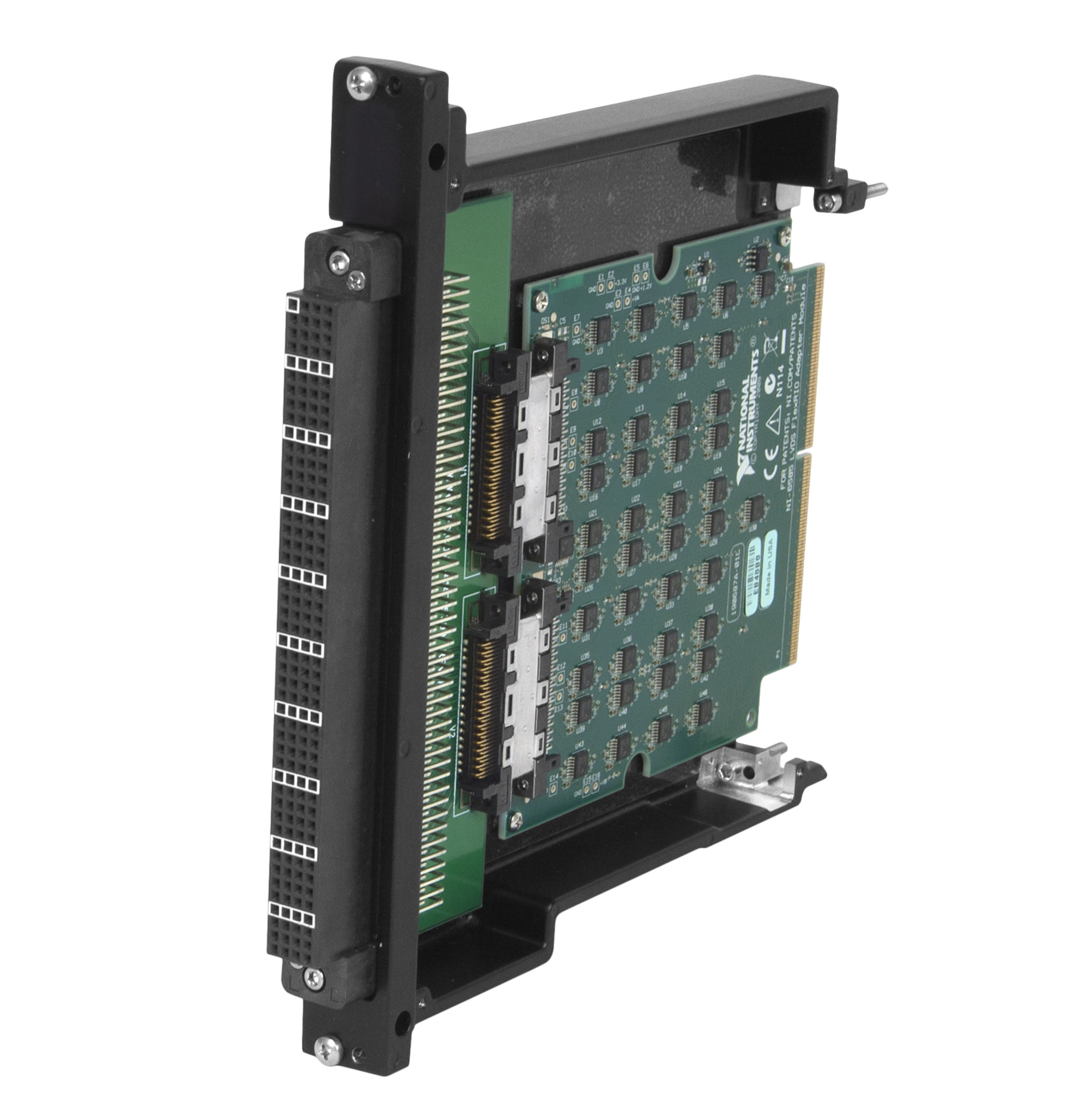

Signal PCB Adapters

Right angle contact modules allow you to mount VPC's 64 & 96 position TriPaddle, 192 position QuadraPaddle or 19 position Mini Coaxial module to virtually any custom PCB. This provides versatility when test requirements exceed our COTS PCB adapters. VPC offers right angle PCB solutions for both ITA and Receiver sides offering maximum customization capability.

Quadrapaddle  tripaddle  mini coax

PCB Mountable iCon

The iCon Receiver offers wire to board connections in multiple configurations. Using twin female QuadraPaddle contacts, the iCon Receiver can be connected directly to male headers on a PCB. VPC's adapter pins can also be used to connect directly to female headers or ribbon cable connectors.

ICON

PCB Mountable i1

The i1 Receiver offers wire to board connections with multiple configurations. Using twin female QuadraPaddle contacts, the i1 Receiver can be connected directly to male headers on a PCB. VPC's adapter pins can also be used to connect directly to female headers or ribbon cable connectors.

i1

PCB Mountable i2 Micro iCon

i2 Micro iCon offers PCB mountability in several options. Right angle solderless compliant headers enable connection to PCB adapters and twin male standard headers enable direct to PCB connection.
i2 PCB layout.

I2
