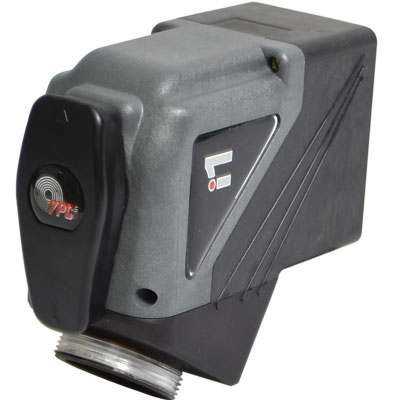

ITA, i1, EMI Shielded, with Protective Cover

Weight .55 lbs [.25 Kg] without protective cover
Frame Material and Clamp Housing Stainless Steel Filled Thermoplastic
Hardware Material Stainless Steel
Latches Nickel-Plated Berullium Copper
Backshell Stainless Steel Filled Thermoplastic
Protective Cover Material Low Density Polyethylene
Available Module Slots 1 Position
Cycle Life

10,000 Cycles

Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 105° C

The i1 EMI has many of the standard features of the i1, in addition to Electro-Magnetic Interference (EMI) protection. The EMI shielding effect on the i1 EMI ITA is provided by the stainless steel fibers in the removable plastic cover and threaded metal coupling adapter.

For information on purchasing strain relief couplers please reference the tech tip link located above.

For additional questions, please contact a Field Application Engineer
