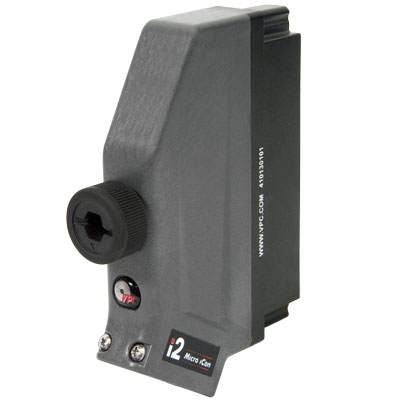

410130101
ITA, i2 Micro iCon, 168 Position
| Specifications | |
|---|---|
| Weight | .25 lbs [.11 Kg] without protective cover |
| Frame Material and Clamp Housing | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel |
| Latches | Nickel-Plated Beryllium Copper |
| Backshell | Glass Reinforced Thermoplastic |
| Cable Clamp Material | Powder Coated Aluminum |
| Contact Positions | 168 Signal |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |
ITA, i2 Micro iCon, 168 Position
The i2 Micro iCon ITA has 168 QuadraPaddle contact positions. The sleek, 0.8” footprint offers a versatile and horizontal stackability.
The 30° U-shaped cable clamp allows ITA modules to be pre-wired before assembly and can hold cable bundles with a cable effective diameter of 0.77 in. The removable cover allows easy access to wiring for maintenance and probing. Integrated spring locking tabs ensure even and secure engagement.
Cable bundle too large? Choose the XL model! Choose an XL-sized backshell, bend radius, & cable exit to better accommodate larger cables such as high-power, high-speed, or twisted pair.
