Specifications
Material	Black PPS
Temperature	Operating • -55° C to 125° C Non Operating • -65° C to 220° C
UL-94 Flame Class	V-0
Dielectric Withstanding Voltage (DWV)	1500 VDC min.
Available Contact Positions	16 signal/16 mini coaxial
Module Slots Needed	1

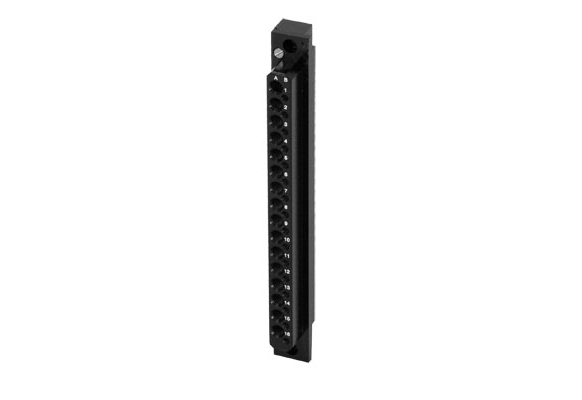

Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position

This module can accommodate certain VPC mini pneumatic contacts, but cannot be fully populated in all 16 positions with them. See specific product drawings for applicable limitations. For further assistance please contact a Field Application Engineer.

Primary mating module 510108210.

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

	Part Number	Description
	610104114	Mini Coax, Contact, Receiver, RG316*
	610104140	Mini Coax, Contact, Receiver, two .025" Square Wire Wrap Posts
	610104141	Mini Coax, Contact, Receiver, RG178
	610104142	Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
	610104149	Mini Coax, Contact, Receiver, RG316 Double Shield
	610110101	Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp only
	610110128	Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
	610110167	Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
	610110177	Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
	610110179	Signal, Contact, Receiver, TriPaddle, 5 Amp, .025" Round Post
	610113170	Mini Fiber Optic, Contact, Receiver, Polymer Optic Fiber*
	610113172	Mini Fiber Optic, Contact, Receiver, Multimode*
	610131108	Mini Pneumatic, Contact, Receiver, Hose Barb for 1/8" [3.2 mm] ID Tubing, Fits Mini Coaxial/ Mini Power modules
	610131111	Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 4 mm OD Tubing
	610131112	Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 6 mm OD Tubing

	Part Number	Description
	510108210	Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position

	Part Number	Description
	510109302	Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws
	510109307	Module Accessory Kit, Quantity 26 2-56 x .250" Flat Head Slotted Screws

	Part Number	Description
	510109501	Protective Cover, Mini Fiber Optic, Receiver

Part Number

Description

510109501

Protective Cover, Mini Fiber Optic, Receiver

	Part Number	Description
	510109116	Strain Relief Plate, Receiver, 90 Series
