410128101

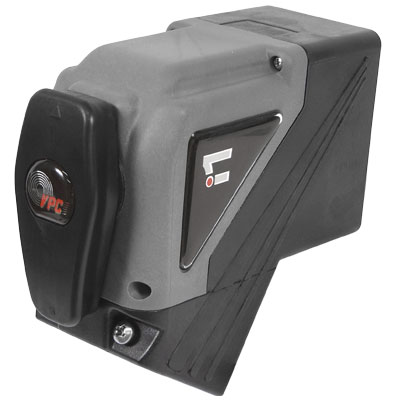

ITA, i1, with Protective Cover
| Specifications | |
|---|---|
| Weight | .55 lbs [.25 Kg] without protective cover |
| Frame Material and Clamp Housing | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel |
| Latches | Nickel-Plated Beryllium Copper |
| Backshell | Glass Reinforced Thermoplastic |
| Protective Cover Material | Low Density Polyethylene |
| Cable Clamp Material | Powder Coated Aluminum |
| Cycle Life |
10,000 Cycles |
| Max. Cable Bundle Diameter | 1.07" |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |
ITA, i1, with Protective Cover
The i1 ITA's small width and inboard handle increase it's side to side stackability. The U-shaped cable clamp allows modules to be pre-wired before assembly and can hold cable bundles with an cable bundle effective diameter of 1.07". The removable cover allows easy access to wiring for maintenance and probing.
Protective cover included.
Cable bundle too large? Choose the i1 XL! Providing an XL cable exit, it better accommodates larger cables such as high-power, high-speed, or twisted pair.
