Infinite PCB Connections

Infinity Connector

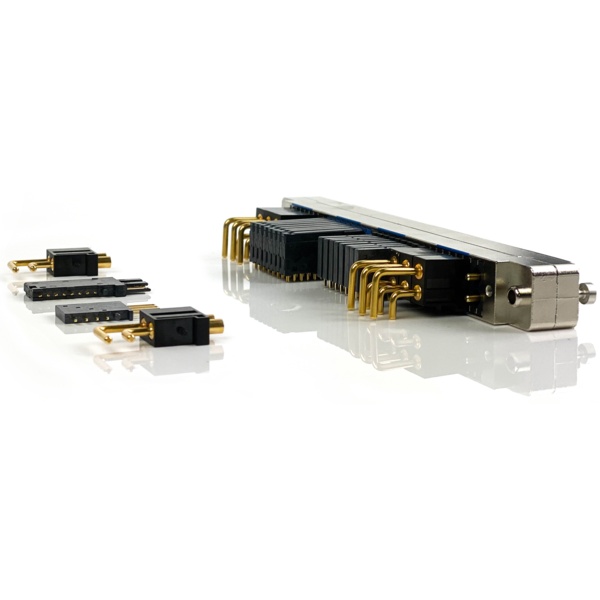

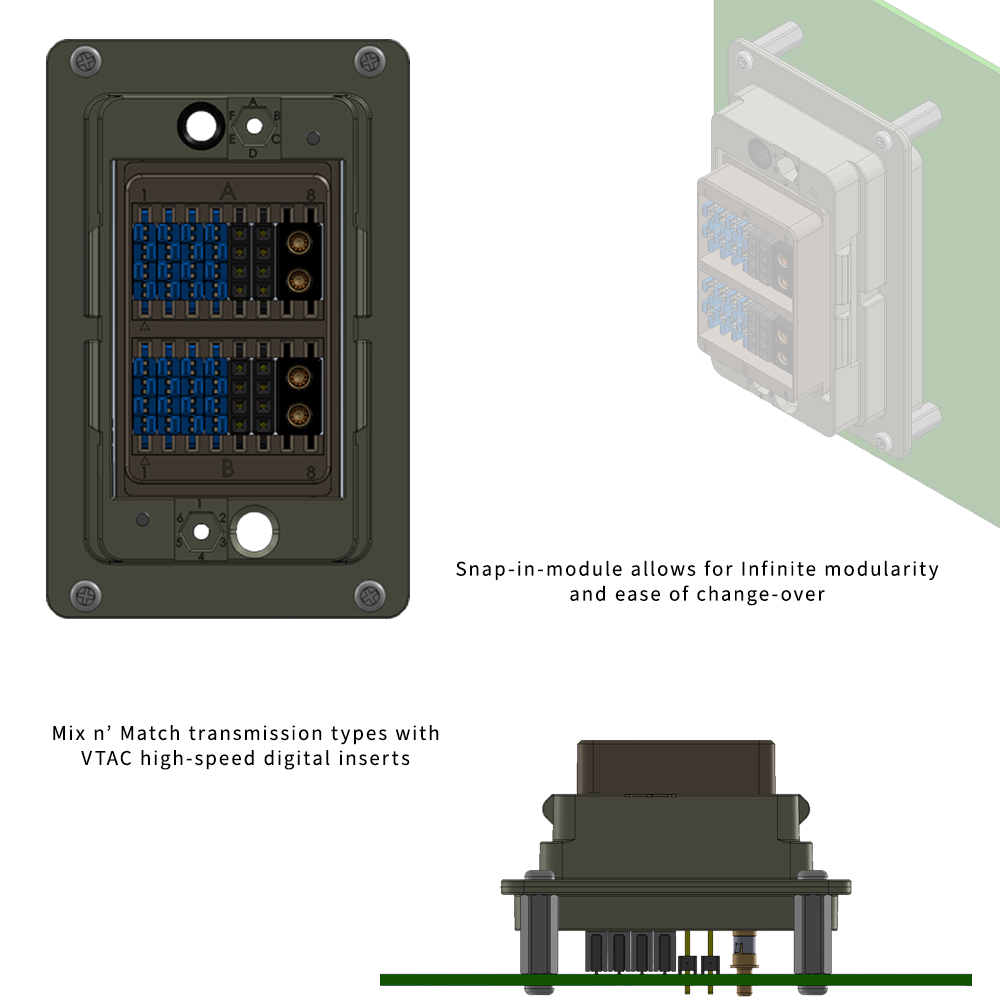

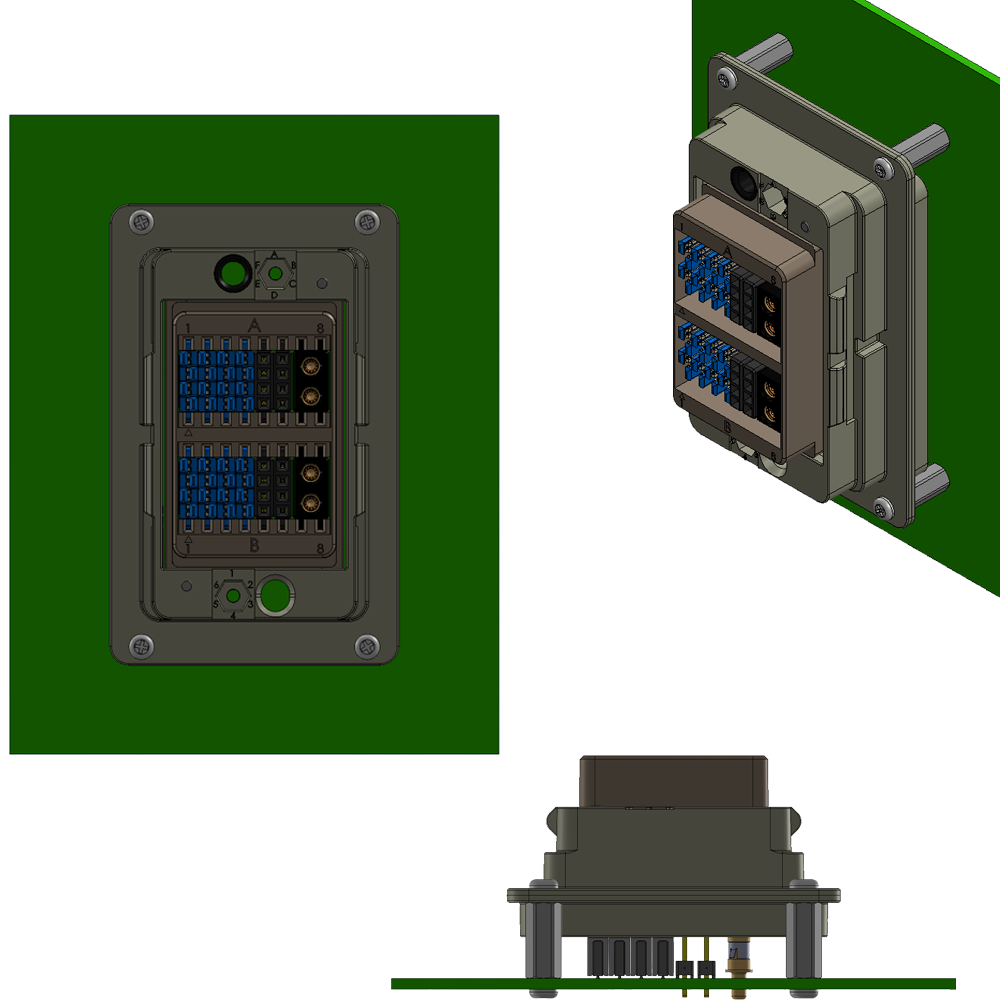

VPC's latest high speed technology allows for concerns about cycle life and lost time due to PCB soldering and changeout to be a thing of the past. The unique design of VPC's VTAC, QuadraPaddle, and Micro Power SIM inserts allows for changeout and replacement of pass-thru inserts while preserving right-angle connections to the PCB.  VPC's SIM module offers up to 34 positions and allows for mixed input/output combinations.

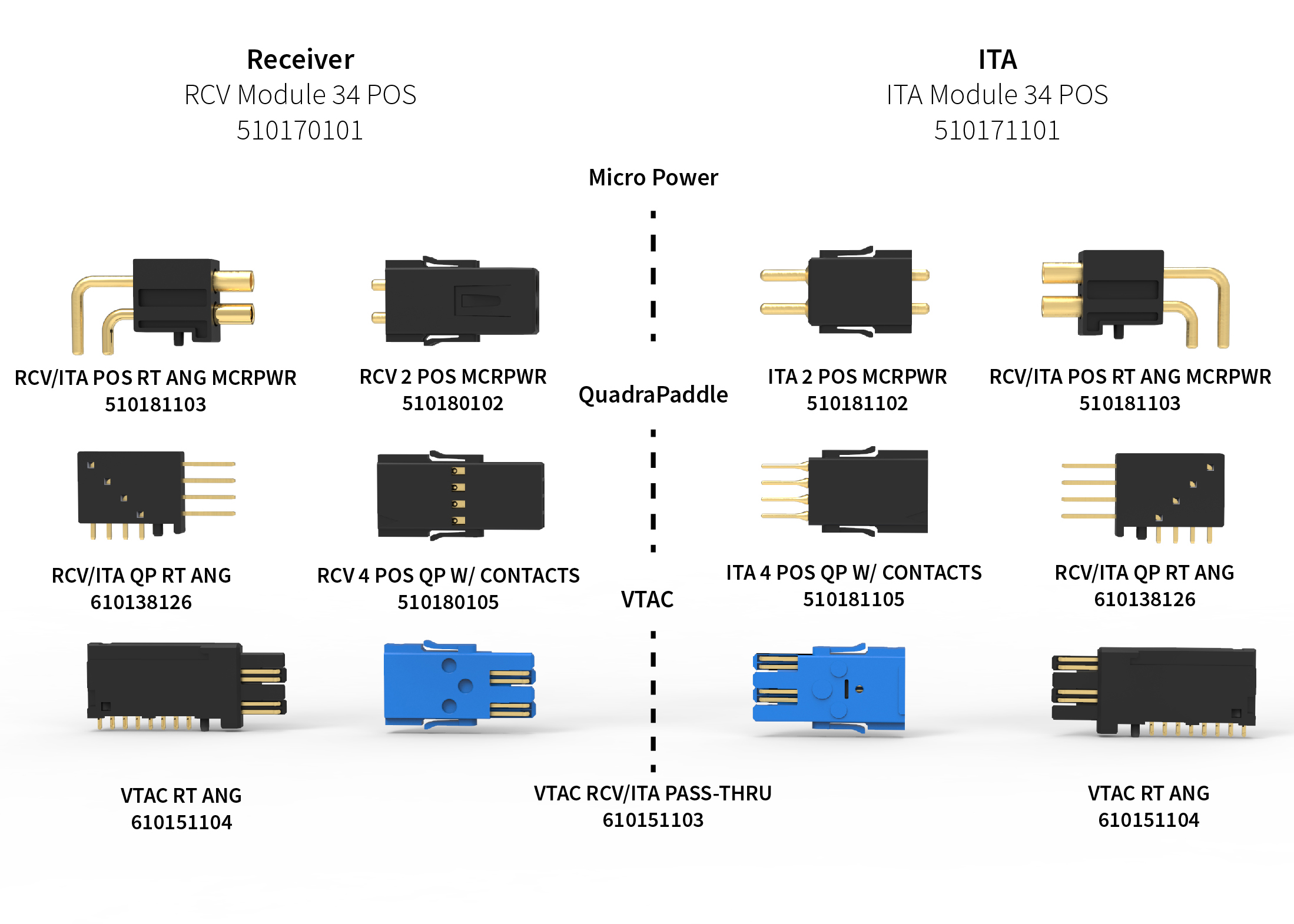

Sample VTAC Configuration

Piece-by-Piece

User Manual

For questions about the Infinity Connector or any VPC product, contact a Field Application Engineer.

Accessory

  • 510109592
    PCB Bracket Kit, SIM Module, Receiver/ITA, for PCB Mounting (Right Angle)

Insert - Micro Power

  • 510180102
    Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
    510181102
    Micro Power, Insert, ITA, SIM, 2 Pos, 2 Slot

Insert - Micro Power/Micro Coax

  • 510180104
    Micro Power or Micro Coax, Insert, Receiver, SIM, 2 Pos, 2 Slot (not loaded)
    510181104
    Micro Power or Micro Coax, Insert, ITA, SIM, 2 Pos, 2 Slot (not loaded)

Insert - QuadraPaddle

  • 510180105
    Signal, Insert, Receiver, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot
    510181105
    Signal, Insert, ITA, QuadraPaddle, SIM, Pass-Thru, 4 Pos, 1 Slot

Insert - Right Angle

  • 510181103
    Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot
    610138126
    Signal, Insert, Receiver/ITA, QuadraPaddle ,SIM, Right Angle, 4 Pos, 1 Slot
    610151104
    VTAC, Insert, Receiver/ITA, SIM, Right Angle, 8 Pos, 1 Slot

Insert - Vertical

  • 610151107
    VTAC, Insert, Receiver/ITA, SIM, Vertical Header, 8 Pos

Insert - VTAC

  • 610151103
    VTAC, Insert, Receiver/ITA, SIM, Pass-Thru, 8 Pos, 1 Slot

Insert Bundles

  • 510180107
    Signal, Insert Bundle, Receiver, QuadraPaddle, SIM, Right Angle and Pass-Thru
    510181107
    Signal, Insert Bundle, ITA, QuadraPaddle, SIM, Right Angle and Pass-Thru
    610151106
    VTAC, Insert Bundle, Receiver/ITA, SIM, Right Angle and Pass-Thru
    610151108
    VTAC, Insert Bundle, Receiver/ITA, SIM,  Vertical Header and Pass-Thru

Module - 90 Series ITA

  • 510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Module - 90 Series Receiver

  • 510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

SIM Module Right Angle Kit

  • 510170102
    SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    510171102
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

Tool- Extraction

  • 910112130
    Tool, Extraction, VTAC, Receiver and ITA
