510108210

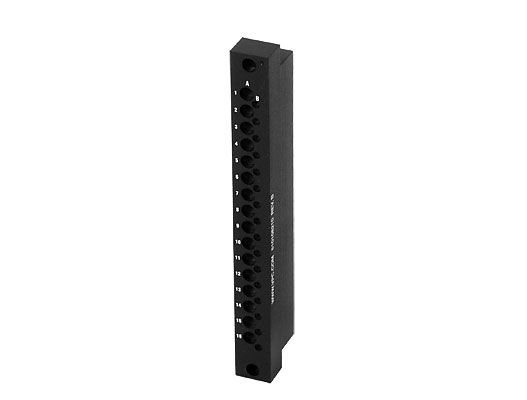

Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
| Specifications | |
|---|---|
| Material | Black-PPS |
| Temperature | Operating • -55° C to 125° C Non Operating • -65° C to 220 ° C |
| UL-94 Flame Class | V-0 |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC min. |
| Available Contact Positions | 16 signal/16 mini coaxial |
| Module Slots Needed | 1 |
Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
Please note: To use VPC mini power contacts with this module, please consult a Field Application Engineer.
This module can accommodate certain VPC mini pneumatic contacts, but cannot be fully populated in all 16 positions with them. See specific product drawings for applicable limitations. For further assistance please contact a Field Application Engineer.
Primary mating module 510104243.
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
