9025TR

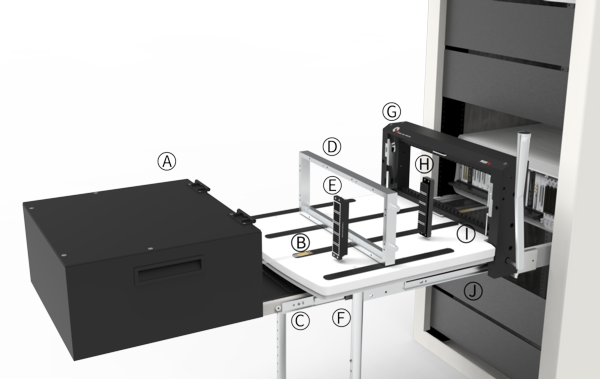

9025TR Exploded View

A. ITA Enclosure B. ITA Patchcords C. Keyboard Tray
D. ITA Frame E. ITA Module F. Leg Kit
G. Receiver Frame H. Receiver Module I. Receiver Patchcords
J. Slide Kit

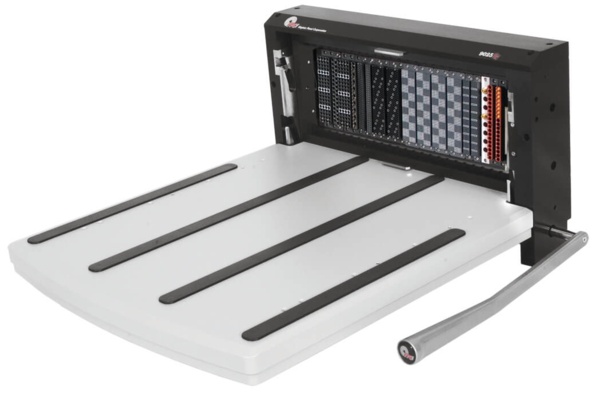

9025TR

The 9025TR has over twice the I/O as the G12 and is outfitted with the same 20 inch platform to support your enclosure while engaging and disengaging.

The 9025TR has over twice the I/O as the G12 and is outfitted with the same 20-inch platform to support enclosures while engaging and disengaging. The front-mount ITA is user-friendly, allowing the enclosure or fixture to be fastened from the mating side. The docking feature of the 9025TR provides an easy way of guiding a fixture into position prior to engagement. Runners along the platform provide a smooth-sliding action, ideal when using fixtures up to 180 pounds. The 9025TR uses all standard modules and contacts, includes a microswitch and is available with optional table legs and keyboard tray kit.

User Manual

Receiver

  • 310104435
    Receiver, 9025TR, 25 Module, with 20" Platform (slide kit required)
    310104436
    Receiver, 9025TR, 25 Module, with 20" Platform, for Tabletop

ITA

  • 410104111
    ITA, 9025, 25 Module, Single Tier, 1" Deep
    410104260
    ITA, 9025, 25 Module, Single Tier, 2" Deep
    410104505
    ITA, 9025, 25 Module, Single Tier, 1.5" Deep

Protective Cover

  • 310113163
    Protective Cover, 9025, 9025TR, 9025 VXI, Receiver
    410112578
    Protective Cover, 9025, 9025VXI & 9025TR, ITA

Module - 90 Series Receiver

  • 510104109
    Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    510104120
    Mini Coax, Module, Receiver, 90 Series, 19 Position
    510104123
    Mini Power, Module, Receiver, 90 Series, 19 Position
    510104133
    Thermocouple, Module, Receiver, 90 Series, 64 Position
    510104134
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position
    510104135
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    510104136
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position
    510104149
    Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
    510104150
    Mini Coax, Module, Receiver, 90 Series, 76 Position
    510104187
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    510104206
    Signal/Mini Power, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104224
    Coax, Module, Receiver, 40 GHz, 90 Series, 8 Position
    510104243
    Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104249
    Coax, Module, Receiver, 75 Ohm, 90 Series, 32 Position
    510104260
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions
    510104266
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions w/ Filter
    510104267
    Micro Power/ Micro Coax, Module, Receiver, 90 Series, 50 Positions
    510104276
    Vacuum-Pneumatic, Module, Receiver, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510104287
    Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
    510104289
    Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
    510104301
    Mini Coax, Module, Receiver, 90 Series, 37 Position
    510104306
    Signal/Micro Coax/Micro Power, Module, Receiver, TriPaddle, 90 Series, 77/8 Position
    510104307
    Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate
    510104319
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    510109315
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    510150115
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
    510150116
    Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
    510150130
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    510150136
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
    510150137
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
    510150147
    Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610138200 and 610138118)
    510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - 90 Series ITA

  • 510108101
    Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
    510108111
    Mini Coax, Module, ITA, 90 Series, 19 Position
    510108112
    Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    510108115
    Mini Power, Module, ITA, 90 Series, 19 Position
    510108124
    Thermocouple, Module, ITA, 90 Series, 64 Position
    510108125
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    510108126
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position
    510108132
    Mini Coax, Module, ITA, 90 Series, 76 Position
    510108169
    Coax, Module, ITA, 40 GHz, 90 Series, 8 Position
    510108178
    Signal/Mini Power, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108179
    Coax, Module, ITA, 20/26 GHz/ 75 Ohm HD and 75 Ohm, 90 Series, 32 Position
    510108210
    Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108240
    Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position
    510108242
    Vacuum, Module, ITA, 90 Series, 2 Port Positions
    510108245
    Signal/Thermocouple, Module, ITA, TriPaddle , 90 Series, 84/12 Position
    510108251
    Vacuum, Module, ITA, 90 Series, 2 Port Positions, w/ M22.5x1.5 Tap
    510108262
    Micro Power / Micro Coax, Module, ITA, 90 Series, 50 Position
    510108263
    Micro Power/ Micro Coax, Module, ITA, 90 Series, 120 Positions
    510108264
    Vacuum-Pneumatic, Module, ITA, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510108276
    Mini Coax, Module, ITA, 90 Series, 37 Position
    510108278
    Signal/Micro Coax, Module, ITA, TriPaddle, 90 Series, 77/8 Position
    510151105
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
    510151106
    Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
    510151107
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610138115) *Mounting Screws NOT Included*
    510151124
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610138122)
    510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Slide Kit

  • 310113409
    20" Slide Kit, Fits 20"-22" Deep Racks, Supports 180 lbs.
    310113410
    24" Slide Kit, Fits 24"-26" Deep Racks, Supports 180 lbs.
    310113411
    30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
    310113451
    28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
    310113500
    36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.

Leg Kit

  • 310113566
    Adjustable Leg Kit for the 20" Platform, 27 - 36", Supports 350 lbs.

Keyboard Tray

  • 310113439
    Keyboard Tray Kit, Slide Configuration, Keyboard with Touchpad Mouse Included

PXI Chassis Mount Kit

  • 310113605
    Dual Chassis Mounting Kit, for mounting 2 PXI chassis together

9025 Enclosure

  • 410112198
    Enclosure, 9025, Hinged Cover,  4" Depth
    410112255
    Enclosure, 9025,  2" Depth
    410112273
    Enclosure, 9025, Hinged Cover, 8" Depth
    410112395
    Enclosure, 9025, Hinged Cover, 12" Depth
    410112415
    Enclosure, 9025, Removable Cover, 8" Depth
    410112823
    Enclosure, 9025, Hinged Cover,  15" Depth

9025TR Enclosure

  • 410114004
    Enclosure, 9025TR, Front Mount, Sloped, 15" Depth

Instrument Bracket

  • 310113002
    Instrument Bracket Kit, w/ Strain Relief, Slide Configuration, for 28"+ Slide Kits
    310113453
    Instrument Bracket Kit, w/ Strain Relief, Slide Configuration, for 28"+ Slide Kits

SIM Module Right Angle Kit

  • 510170102
    SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    510171102
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

Strain Relief Plate

  • 510109116
    Strain Relief Plate, Receiver, 90 Series
    510109296
    Strain Relief Plate, ITA, 90 Series
    510109298
    Strain Relief Plate, Receiver, 90 Series
