G10

This 10- Module Solution provides reliability while simultaneously engaging up to 2,400 signal contacts. The adaptable G10 integrates a wide variety of I/O options in various module configurations. The contacts are incorporated into cable assemblies for specific instruments.

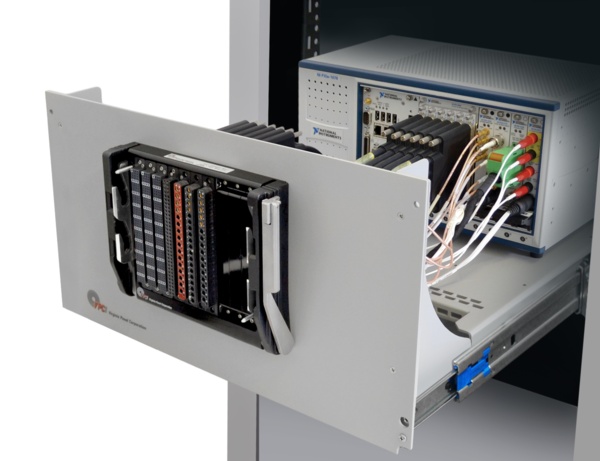

The slide mount option is available for rack or chassis mount applications and offers quick access to resources and cables. The ITA has a unique, removable, EMI shielded cover which allows easy access to the modules and contacts.

The G10 Vertical Hinged Mounting Frame Configuration is suitable for rack or chassis mount applications and offers quick access to resources and cables. It eliminates the need to unplug all wires and cables for troubleshooting. Quick-locking latches allow for easy opening and closing motions.

Receiver

  • Receiver, G10, 10 Module
    Receiver, G10, 10 Module, with Micro Switch
    Receiver, G10, 10 Module, for Slide Mounting (slide kit required)

ITA

  • ITA, G10, 10 Module, 0.5" Standard thickness
    ITA, G10, 10 Module, Removable Backshell, w/ Protective Cover
    ITA, G10, 10 Module, 0.88" Thickness

Protective Cover

  • Protective Cover, G10, Receiver
    Replacement Protective Cover, G10, ITA

ITA Enclosure

  • Enclosure, G10, Hinged Cover
    Enclosure, G10, 3 Cable Clamps, 4" Depth

Module - 90 Series Receiver

  • Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    Mini Coax, Module, Receiver, 90 Series, 19 Position
    Mini Power, Module, Receiver, 90 Series, 19 Position
    Thermocouple, Module, Receiver, 90 Series, 64 Position
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position
    Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
    Mini Coax, Module, Receiver, 90 Series, 76 Position
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    Coax, Module, Receiver, 18 Ghz, 90 Series, 8 Pos
    Signal/Mini Power, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    Coax, Module, Receiver, 40 GHz, 90 Series, 8 Position
    Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    Coax, Module, Receiver, 75 Ohm, 90 Series, 32 Position
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions w/ Filter
    Micro Power/ Micro Coax, Module, Receiver, 90 Series, 50 Positions
    Vacuum-Pneumatic, Module, Receiver, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
    Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
    Mini Coax, Module, Receiver, 90 Series, 37 Position
    Signal/Micro Coax/Micro Power, Module, Receiver, TriPaddle, 90 Series, 77/8 Position
    Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
    Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
    Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610 138 200 and 610 138 118)
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - 90 Series ITA

  • Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
    Mini Coax, Module, ITA, 90 Series, 19 Position
    Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    Thermocouple, Module, ITA, 90 Series, 64 Position
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position
    Mini Coax, Module, ITA, 90 Series, 76 Position
    Coax, Module, ITA, 40 GHz, 90 Series, 8 Position
    Coax, Module, ITA, 18 GHz, 90 Series, 8 Pos
    Coax, Module, ITA, 20/26 GHz/ 75 Ohm HD and 75 Ohm, 90 Series, 32 Position
    Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position
    Vacuum, Module, ITA, 90 Series, 2 Port Positions
    Signal/Thermocouple, Module, ITA, TriPaddle , 90 Series, 84/12 Position
    Vacuum, Module, ITA, 90 Series, 2 Port Positions, w/ M22.5x1.5 Tap
    Micro Power / Micro Coax, Module, ITA, 90 Series, 50 Position
    Micro Power/ Micro Coax, Module, ITA, 90 Series, 120 Positions
    Vacuum-Pneumatic, Module, ITA, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    Mini Coax, Module, ITA, 90 Series, 37 Position
    Signal / High Power, Module, ITA, TriPaddle, 90 Series, 6/6 Positions
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
    Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

ITA Adapter Plate

  • Adapter Plate, Use 25 Module ITA Enclosure w/ G10 ITA.

Strain Relief Plate

  • Strain Relief Plate, Receiver, 90 Series
    Strain Relief Plate, ITA, 90 Series
    Strain Relief Plate, Receiver, 90 Series

Accessory

  • Spacer, ITA, G10, .5" Expander for enclosure
    Microswitch, G2, 6 & 10 Receivers
    Alignment Pin Replacement Kit, G2/G6/G10, Receiver
    Threaded Coupling Adapter, G2, G6, G10, ITA, for Conduit Harnessing Assemblies/Clamps

PXI Chassis Mount Kit

  • Chassis Mount Kit for Pickering 40-908, 40-914, 40-918
    Mounting Kit, Chassis,  NI PXI-1044/1045/1065/1085, PXIe-1065/1075 & PXIe-1095
    Chassis Mount Kit for Agilent M9018A Chassis

Vertical Hinged Mounting Frame

  • Vertical Hinged Mounting Frame, G10, 5U
    Vertical Hinged Mounting Frame, 5U, Blank
    Vertical Hinged Mounting Frame, G10, 5U, Cutout on Right
