G20 Pull-Thru Solution

G20

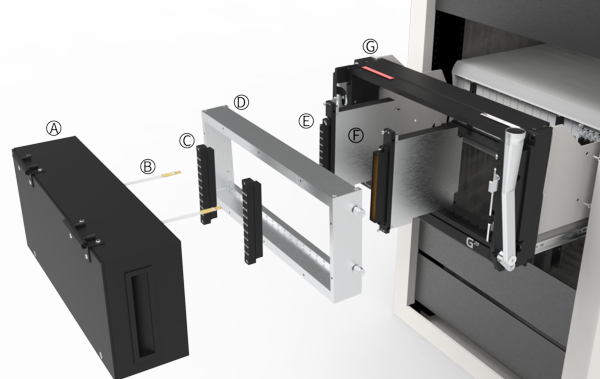

G20 Exploded View

A. ITA Enclosure B. ITA Patchcords C. ITA Modules
D. ITA Frame E. Receiver Modules F. Pull-Thru Adapters
G. Receiver Frame



G20

Video

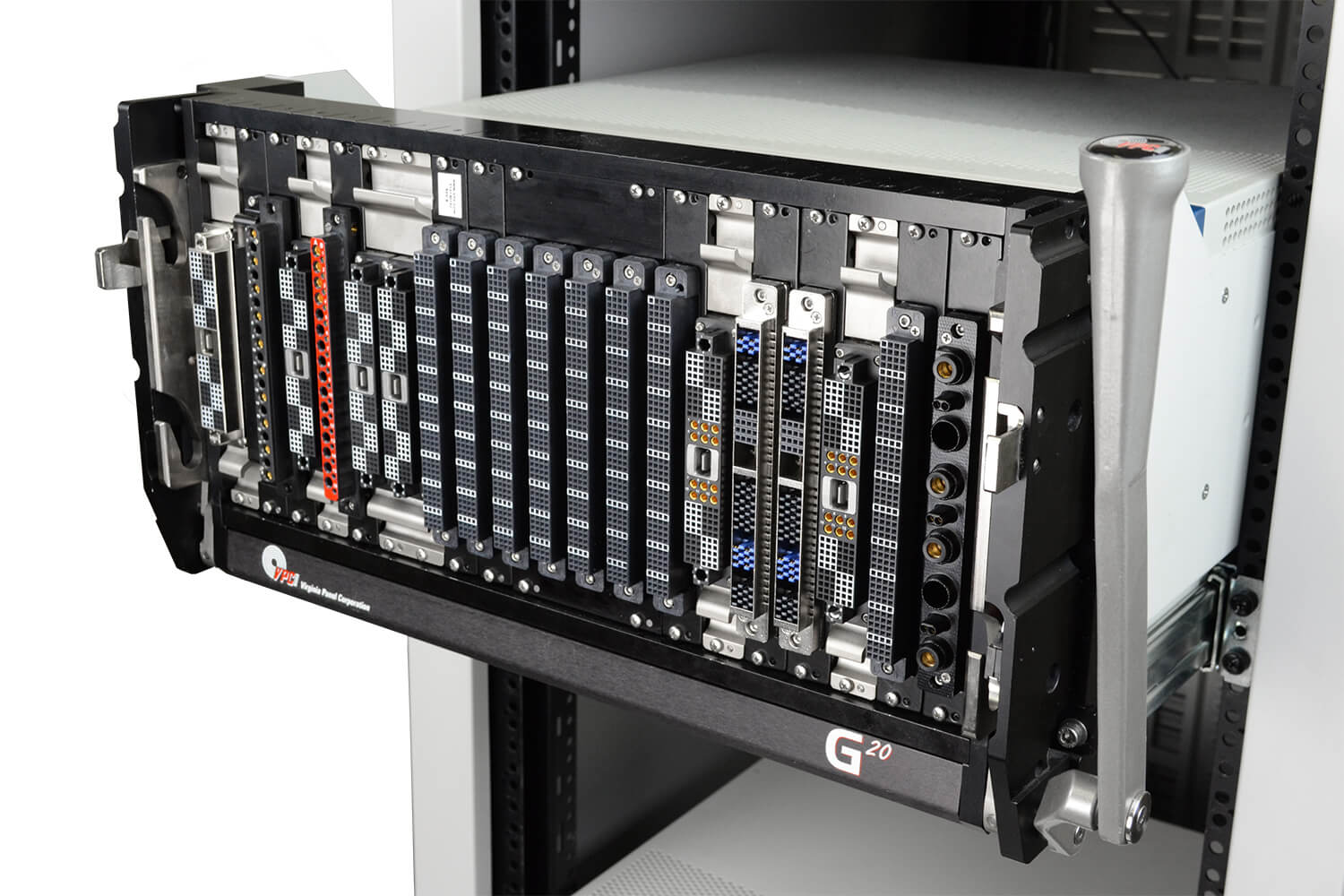

20 Module Solution

90 Series Modules

  • Accepts all standard VPC 90 Series modules
  • Provides direct connection to instrument cards
  • Remove connector modules and instrumentation from chassis backplane
  • 0.80" centers correspond with PXI system slot requirements

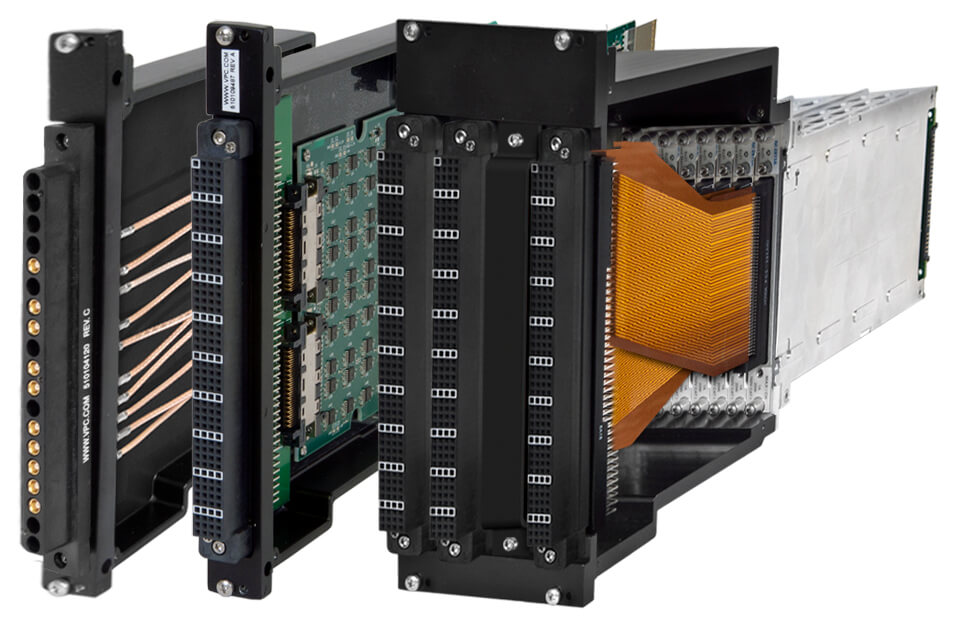

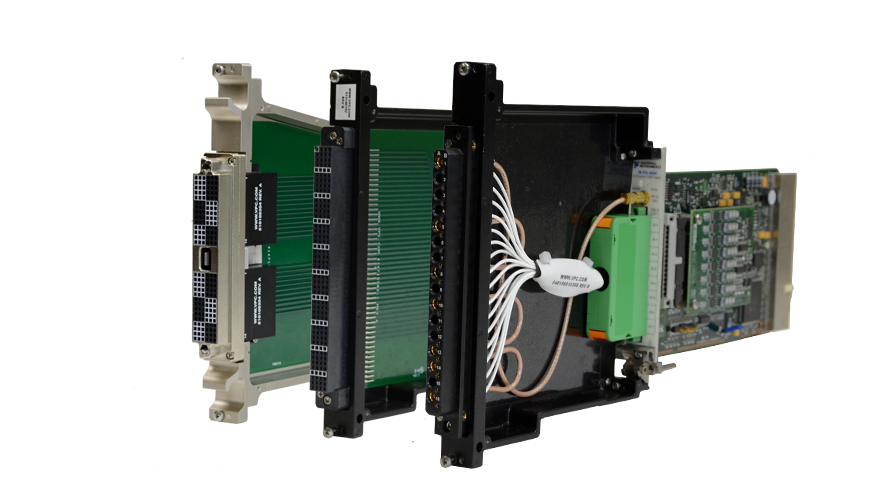

Pull-Thru Adapters

Pull-Thru Adapters

  • Enables removal of PXI card and VPC module as one-unit
  • Options for PCB or discrete-wiring to PXI card
  • Work with NI FlexRio Adapter

For more information, contact us .

Receiver

  • 310120188
    Receiver, G20, 20 Module, for Slide Mount, Interchangeable Handle (L or R)

ITA

Protective Cover

  • 310113422
    Protective Cover, G20, Receiver
    410112797
    Protective Cover, G20,  ITA

Module - Blank

  • 510130113
    Blank, Module, Receiver,  Pull-Thru, 1 Position
    510130284
    Blank, Module, ITA, Pull-Thru, 1 Position

Mounting Flange Kit

  • 310113622
    Mounting Flange Kit, G20/G20x, Receiver,  f/  NI PXI-1045 & PXI-1085 Chassis
    310113760
    Mounting Flange Kit, G20/G20X, f/ NI PXI-1095 and PXIe-1084 Chassis

Slide Kit

  • 310113409
    20" Slide Kit, Fits 20"-22" Deep Racks, Supports 180 lbs.
    310113410
    24" Slide Kit, Fits 24"-26" Deep Racks, Supports 180 lbs.
    310113411
    30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
    310113451
    28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
    310113500
    36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.

Accessory

  • 310113365
    Microswitch, Pull-Thru Receivers, Replacement

G20/G20x Enclosure

  • 410112790
    Enclosure, G20, Hinged Cover, 4" Depth
    410114143
    Enclosure, G20, Hinged Cover, 12" Depth

Pull-Thru Adapter- Accessory

  • 510109462
    PXI Module Adapter, Pull Thru Adapter, Receiver, 1 Position

Pull-Thru Adapter- Blank

  • 510109461
    Pull-Thru Adapter, Not Loaded, Single Slot, 1 Module Position

Pull-Thru Adapter- Micro Coax

  • 510140119
    Pull-Thru Adapter, Wired, Micro Coax, f/ NI PXI-2593

Pull-Thru Adapter- Micro Power

  • 510140173
    Pull-Thru Adapter, Wired, Micro Power, f/ Pickering 40-161-003
    510140177
    Pull-Thru Adapter, Wired, Micro Power, 20-pin ML GMCT connector, f/ Pickering 40-161-101

Pull-Thru Adapter- Mini Coax

  • 510140157
    Pull-Thru Adapter, Wired, Mini Coax, to 4 FML SMB Plugs and 4 ML BNC Plugs, f/ NI PXIe-5162.

Pull-Thru Adapter- Mini Power

  • 510140147
    Pull-Thru Adapter, Wired, Mini Power, f/ NI PXI-2586

Pull-Thru Adapter- QuadraPaddle

  • 510109465
    Pull-Thru Adapter, Wired, QuadraPaddle, to 2 x RJ45 Plugs, f/ NI PXIe-8234
    510109470
    Pull-Thru Adapter, PCB, QuadraPaddle, 68-Pin Male SCSI, f/ NI PXIe 8430/8, 8431/8
    510109473
    Pull-Thru Adapter, PCB, QuadraPaddle, to 68-Pin VHDCI Plug, f/ NI PXIe-6537
    510109488
    Pull-Thru Adapter, Wired, QuadraPaddle, 200 Pin Male LFH, f/ Pickering 40-670-022-99/ 2
    510140113
    Pull-Thru Adapter, Wired, QuadraPaddle, to 100 Pin ML SCSI, f/ NI PXI-6514/15, 6509
    510140114
    Pull-Thru Adapter, Wired, QuadraPaddle, 2 x 68-Pin ML VHDCI, f/ NI PXI-6723
    510140129
    Pull-Thru Adapter, Wired, QuadraPaddle, f/ Excalibur EXC-4000cPCI/xx
    510140135
    Pull-Thru Adapter, PCB, QuadraPaddle, 100-Pin FML HDI, f/ NI PXI-2527
    510140138-1
    Pull-Thru Adapter, Wired, QuadraPaddle, 100-Pin SCSI, f/ NI PXI-6509
    510140141-1
    Pull-Thru Adapter, PCB, QuadraPaddle, 160-Pin FML DIN, f/ Pickering 40-612-002
    510140141-2
    Pull-Thru Adapter, Wired, QuadraPaddle, 160-Pin FML DIN, f/ Pickering 40-139-201
    510140158
    Pull-Thru Adapter, Wired, Quadrapaddle,  2 x ML VHDCI,  f/ NI PXIe-6363
    510140194
    Pull-Thru Adapter, Wired, QuadraPaddle, to 78 Pin FML D-Sub, f/ Pickering 40-137-101
    510140250
    Pull-Thru Adapter, PCB, QuadraPaddle, to 160 Pin FML DIN, f/ NI PXIe-4322
    510140251
    Pull-Thru Adapter, Wired, QuadraPaddle, to 68 Pin SCSI Female, f/ NI PXIe-6612
    510140253
    Pull-Thru Adapter, Wired, QuadraPaddle, f/ Pickering 40-614A-002
    510140254
    Pull-Thru Adapter, Wired, QuadraPaddle, f/ Pickering 40-139-101
    510140255
    Pull-Thru Adapter, Wired, QuadraPaddle, 160-Pin DIN Female, f/ NI PXIe-4322
    510140306
    Pull-Thru Adapter, Wired, QuadraPaddle, 2 x ML VHDCI, f/ NI PXIe-7858R
    510140311
    Pull-Thru Adapter, Wired, QuadraPaddle, 160-Pin ERNI, f/ Pickering 40-613-002
    510140339
    Pull-Thru Adapter, Wired, QuadraPaddle, VHDCI ML, f/ NI PXIe-6386

Pull-Thru Adapter- TriPaddle

  • 510109469
    Pull-Thru Adapter, Wired, TriPaddle, to 2 x Mini-Comb Pl, f/ NI PXI-4110
    510140111
    Pull-Thru Adapter, Wired, TriPaddle, 2 x 9-Pin FML D-Sub, f/ NI PXI-8513/2
    510140197
    Pull-Thru Adapter, Wired, TriPaddle, 68 Pin ML VHDCI, f/ AIT PXI-C1553
    510140235
    Pull-Thru Adapter, Wired, TriPaddle, 37-Pin FML D-Sub, f/ NI PXI-2564
    510140249
    Pull-Thru Adapter, Wired, TriPaddle, f/ NI PXIe-5423
