G6

G6 Exploded View

A. ITA Patchcords B. ITA Modules C. ITA Removable Cover
D. ITA Frame E. U-Shaped Cable Clamp F. Receiver Modules
G. Receiver Frame H. Vertical Mounting Frame I. Receiver Patchcords



G6

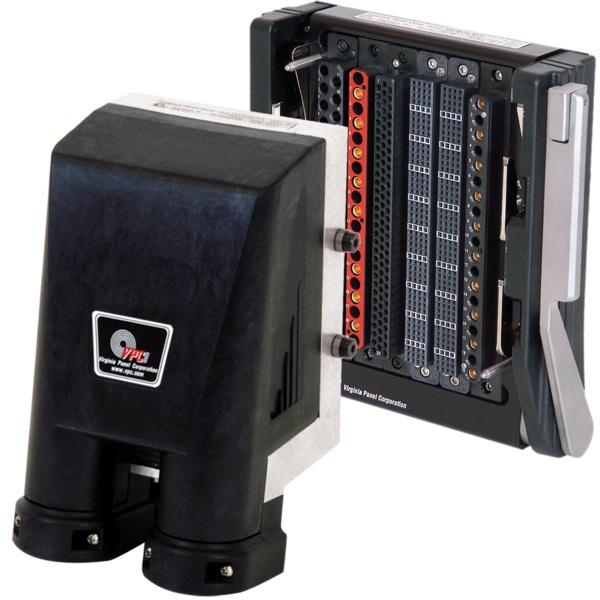

This 6-Module solution provides versatility in a small footprint and can simultaneously engage up to 1,440 signal contacts. The Vertical Hinged Mounting Frame Configuration is suitable for rack or chassis mount applications and offers quick access to resources and cables. The ITA has a unique, removable, EMI shielded cover which allows easy access to modules and contacts.

Compatible with 90 Series Modules

For more information, contact a Field Application Engineer.

Receiver

  • 310104336
    Receiver, G6, 6 Module, w/ Microswitch
    310104344
    Receiver, G6, 6 Module,  EMI
    310104419
    Receiver Kit, G6 Receivers X 2 , Mounted on Slide Mount Panel (slide kit required)

ITA

  • 410104273
    ITA, G6, 6 Module, w/ EMI backshell, Front Protective Cover
    410104288
    ITA, G6, 6 Module, EMI
    410104331
    ITA, G6, 6 Module
    410104732
    ITA, G6, 6 Module, Oversized Backshell

Protective Cover

  • 310113158
    Protective Cover, G6, Receiver
    410112684
    Replacement Protective Cover, G6, ITA

Vertical Hinged Mounting Frame

  • 310113341
    Vertical Hinged Mounting Frame, G6, 5U, 1 Position
    310113358
    Vertical Hinged Mounting Frame, 5U, Blank
    310113397
    Vertical Hinged Mounting Frame, G6, 5U, 2 Positions

Keying Pin Kit

  • 310118112
    Keying Pin Kit, Receiver/ITA

Accessory

  • 310113180
    Microswitch, G2, 6 & 10 Receivers
    310118000
    Alignment/ Dowel Pin Replacement Kit, G2/G6/G10, Receiver
    410112599
    Threaded Coupling Adapter, G2, G6, G10, ITA, for Conduit Harnessing Assemblies/Clamps

PXI Chassis Mount Kit

  • 310113371
    Mounting Flange Kit, Chassis, Pickering 40-908, 40-914, 40-918
    310113417
    Mounting Flange Kit, Chassis, NI PXI-1044/1045/1065/1085, PXIe-1065/1075 & PXIe-1095
    310113589
    Mounting Flange Kit, Chassis, Agilent M9018A

G6/ G6X Enclosure

  • 410112237
    Enclosure, G6, 2 Cable Clamps, 6" Depth (for ITA p/n  410104331)
    410112401
    Enclosure, G6, Hinged Cover, 4" Depth, No Cable Exits (for ITA p/n 410104331)
