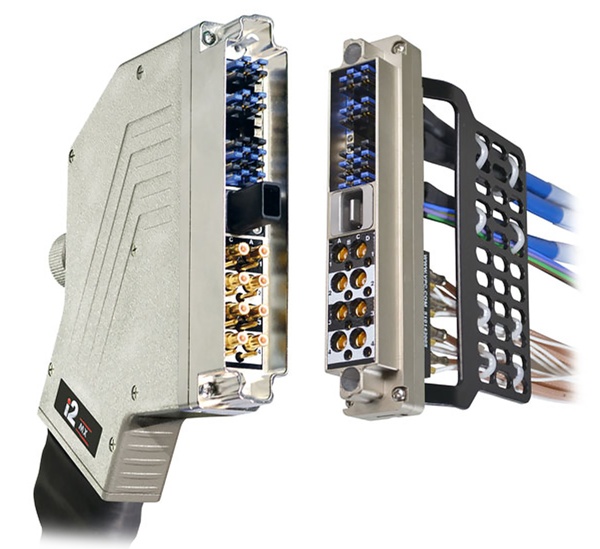

i2 MX, VPC's handheld ITA offers a configurable connector in a slim 0.8" footprint and provides EMI protection features to support high-speed applications. With multiple I/O options to choose from, i2 MX allows you to engineer the ideal connector to meet your test application needs.

i2 MX XL Extra Capabilities

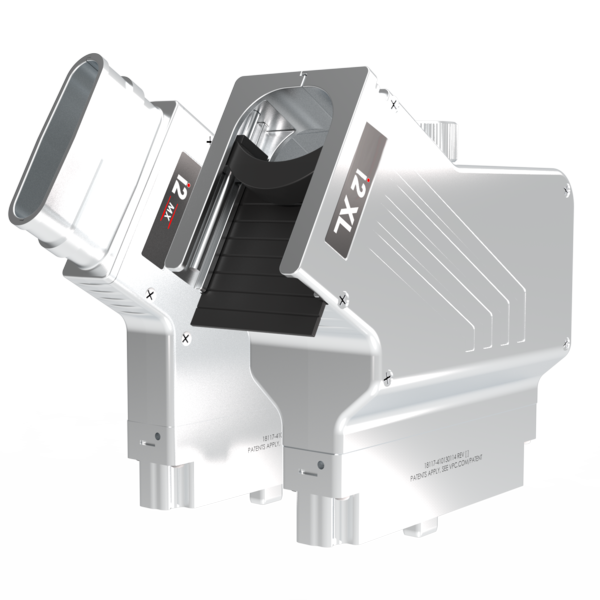

VPC's i2 MX XL connector features all of the same benefits as the i2 MX with capabilities for larger wire bundles.

  • XL-sided backshells offer larger cable exits & increased bend radius
  • Accommodates larger wire bundles, including high-speed and twisted pair
  • Mating face remains compatible with standard receivers
  • Easily reversable all metal EMI shielding backshell allows for multiple mounting configurations

i2 MX Flying Leads

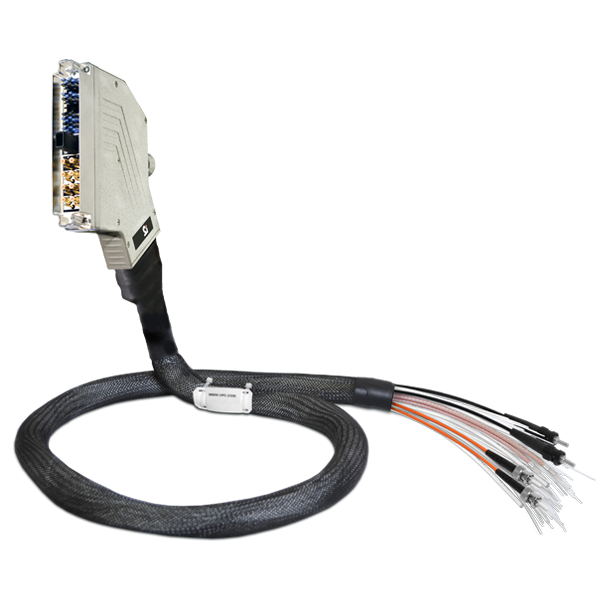

Flying leads ITA cable assemblies enable pin-your-own configuration flexibility.

  • Hybrid assembly allows combination of signal, coax, power, high speed, thermocouple, fiber optic, and pneumatic transmission types
  • i2 MX flying leads offer up to 22 slots for SIM inserts and a maximum of 176 high speed contact positions

i2 MX PCB Compatibility

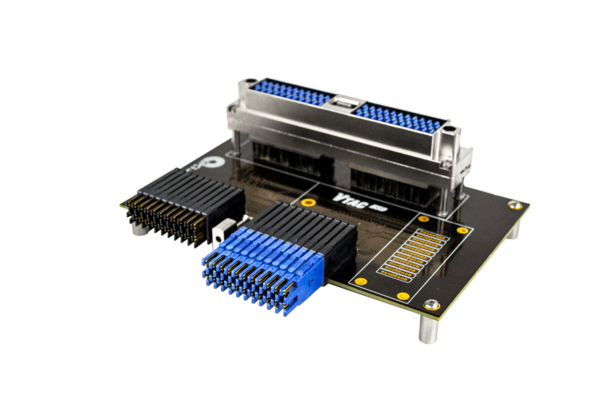

The i2 MX offers PCB mounting in several options. VPC VTAC vertical headers allow for i2 MX modules to be PCB mounted on or inside an enclosure directly serving as a pass-thru module or secondary test connection preserving PCB connections similarly to our Infinity Connector. Right angle VTAC inserts provide a high-speed data connection between the i2 MX and PCB offering 10+ Gbps per differential pair.

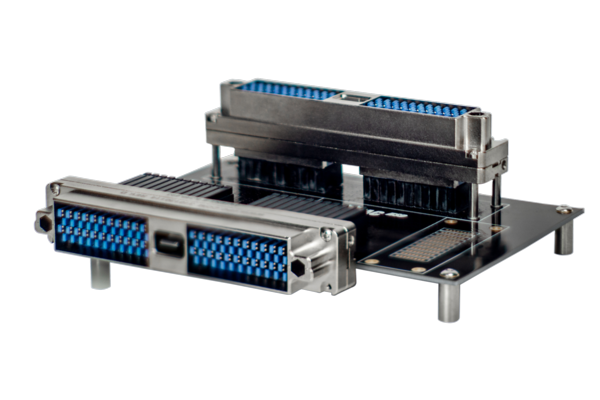

  • 60 or 84 pin male headers offer solderless compliant pins for easy PCB implementation with the use of twin female QuadraPaddle contacts

User Manual          Video

Contacts & Patchcords

VPC offers a wide array of contacts with a variety of connection options that are configurable for virtually any interconnect requirement.

Range of transmission types: Signal, coax, power, high speed, thermocouple, fiber optic, and pneumatic

Click here to try our Patchcord Designer.

i2 MX Modules

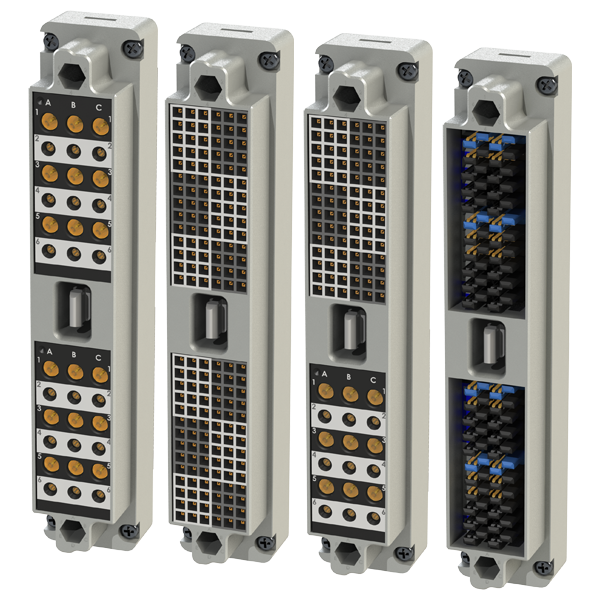

  • VPC offers interchangeable modular inserts to fit any test requirement
  • Increased contact selection: QuadraPaddle, TriPaddle, Micro Coax/Power, Mini Coax/Power, and VTAC
  • Preconfigured solutions available, for more information, please contact one of our Field Application Engineers

i2 MX Inserts

Receiver

  • 310130113
    Receiver, i2 MX, 22 Slot VTAC/SIM Insert, EMI
    310130114
     Receiver, i2 MX, Modular, EMI

ITA

  • 410130114
    ITA, i2 MX, Modular, EMI
    410130116
    ITA, i2 MX, 22 Slot VTAC/SIM Insert, EMI
    410130126
    ITA, i2 MX XL Backshell, Modular, EMI
    410130133
    ITA, i2 MX 22 Slot VTAC/SIM Insert, EMI, XL Backshell

Protective Cover

  • 310113667
    Protective Cover, i2 MX and i2 Micro iCon, Receiver, EMI-Shielded
    410113208
    Protective Cover, i2 MX and i2 Micro iCon, ITA, EMI-Shielded

Module Insert - i2 MX Receiver

  • 510143001
    Adapter Rails (for High Speed Inserts), i2MX, Receiver, 88 Pos, 11 Slot
    510143002
    Signal, Module Insert, Receiver, i2 MX, 84 Position, QuadraPaddle, Crimp
    510143003
    Signal, Module Insert, Receiver, i2 MX, 84 Position, QuadraPaddle, Fully Loaded w/ Twin Female Contacts (p/n 610138200)
    510143004
    Signal/Micro Power/ Micro Coax, Module Insert, Receiver, TriPaddle, i2 MX, 9/9 Position
    510143005
    Signal/Mini Power/ Mini Coax, Module Insert, Receiver, TriPaddle, i2 MX, 8/8 Position
    510143006
    Signal, Module Insert, Receiver, TriPaddle, i2 MX, 33 Position
    510143009
    Micro Coax/Micro Power, Module Insert, Receiver, i2 MX, 15 Position

Module Insert - i2 MX ITA

  • 510143007
    Module Insert, Blank, i2 MX, ITA
    510144001
    Adapter Rails (for High Speed Inserts), i2MX, ITA, 88 Pos, 11 Slot
    510144002
    Signal, Module, ITA, i2 MX, 84 position, QuadraPaddle, Crimp
    510144004
    Signal/Micro Power/Micro Coax, Module Insert, ITA, TriPaddle, i2 MX, 9/9 Position
    510144005
    Signal/Mini Power/ Mini Coax, Module Insert, ITA, TriPaddle, i2 MX, 8/8 Position
    510144006
    Signal, Module Insert, ITA, TriPaddle, i2 MX, 33 Position
    510144009
    Micro Coax/Micro Power, Module Insert, ITA, i2 MX, 15 Position

Keying Pin Kit

  • 310113461
    Keying Pin Kit, iSeries, Receiver and ITA

Strain Relief Plate

  • 310113681
    Strain Relief Plate, Receiver, i2 MX

Accessory

  • 510109204
    Header, i2 Micro iCon, Receiver, 84 Pin, for PCB Mounting

Module - Blank

  • 510143007
    Module Insert, Blank, i2 MX, ITA

Tool- Misc

  • 910121202
    Tool, Banding Tool, for 1/8" bands, i2 MX, ITA Cable Exit
