iCon XL

iCon XL

VPC's iCon XL offers features that make it ideal for high power applications.

  • Supports iCon High Power module with up to (6) 150 amp contacts

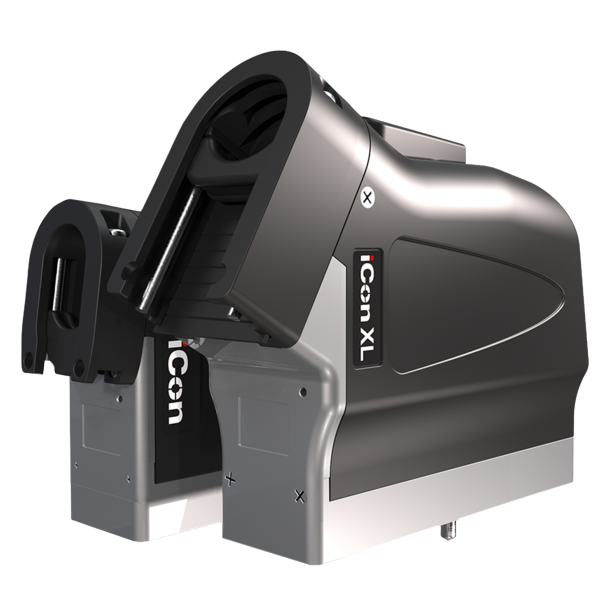

iCon XL Extra Capabilities

VPC's iCon XL connector features all of the same benefits as the iCon, but with a larger bend radius and enlarged cable exit to support high power cables

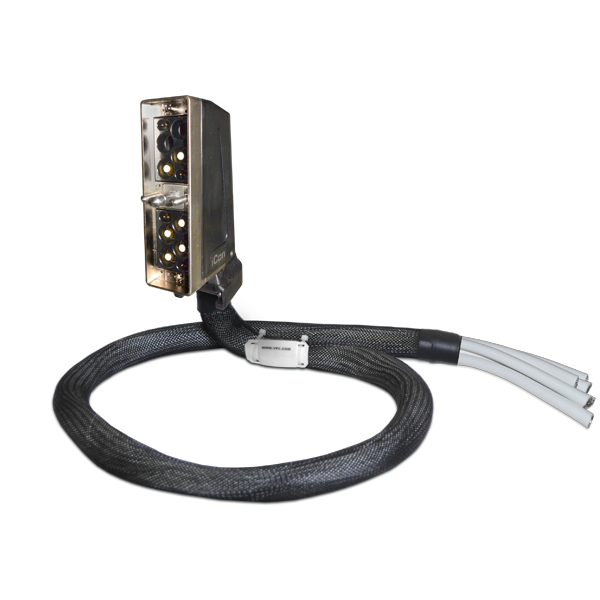

iCon XL Flying Leads

  • Fully wired connectors are available with flying leads
  • Flying leads ITA cable assemblies enable pin-your-own configuration flexibility
  • Hybrid assembly allows combination of signal, power, coax, fiber optic, and pneumatic

Visit VPC's High Power contact page to learn more about VPC's offerings for high power

User Manual

ITA

  • 410123232
    ITA, iCon, EMI, XL Backshell (XL Bend Radius and Cable Exit)

Module - iCon/i1 ITA

  • 510161124
    Signal / High Power, Module, ITA, TriPaddle, iCon Series, 4/4 Position

Contact - ITA

  • 610150101
    High Power, Contact, ITA, 150 Amps, 2 AWG

Receiver

  • 310123101
    Receiver, iCon, with Protective Cover

Module - iCon/i1 Receiver

  • 510160124
    Signal / High Power, Module, Receiver, TriPaddle, iCon Series, 4/4 Position

Contact - Receiver

  • 610149101
    High Power, Contact, Receiver, 150 Amps, 2 AWG

Mounting Panel

  • 310113301
    Fixed Mounting Panel, iCon, 4U, 8 Positions, Painted Gray
    310113302
    Fixed Mounting Panel, iCon, 4U, 8 Positions, Black Anodized
    310113488
    Fixed Mounting Frame, iCon, 1U, 2 Positions, Black Anodized
    310113491
    Fixed Mounting Frame, iCon, 1U, 2 Positions, Painted Gray
    310113540
    Mounting Panel, iCon, 6U, 4 Positions, with Slide Mounting (slide kit required)

Vertical Hinged Mounting Frame

  • 310113463
    Vertical Hinged Mounting Frame, iCon, 5U, 3 Positions

Accessory

  • 310113467
    Cover Plate, iCon, for Mounting Panel Cutouts, Painted Gray
    310113490
    Cover Plate, iCon, for Mounting Panel Cutouts, Painted Black

Protective Cover

  • 310113460
    Replacement Protective Cover, iCon, Receiver
    410112750
    Replacement Protective Cover, iCon, ITA

Keying Pin Kit

  • 310113461
    Keying Pin Kit, iSeries, Receiver and ITA
