iCon

iCon

iCon Exploded View

A. ITA Patchcords B. ITA Modules C. ITA Removable Cover
D. ITA Frame E. U-Shaped Cable Clamp F. Receiver Frame
G. Receiver Modules H. Receiver Patchcords I. Mounting Panel



iCon

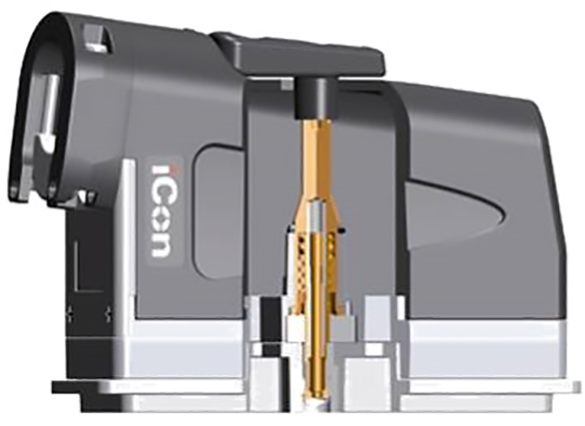

iCon Engagement Mechanism (Internal View)

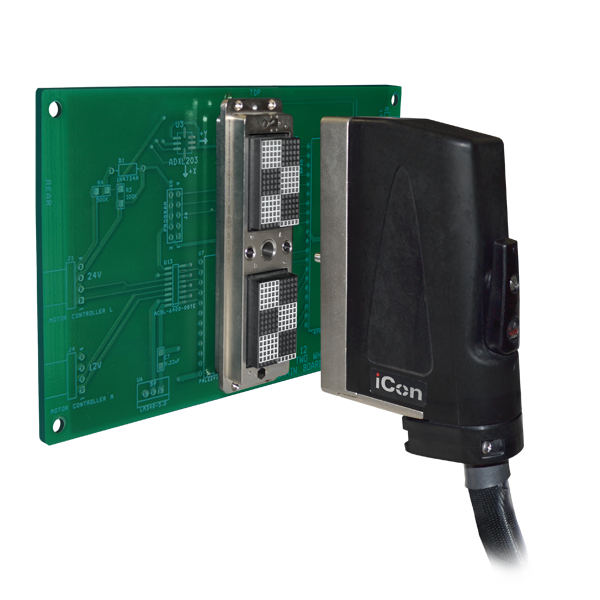

iCon is a fail-safe rack and panel connector specifically designed for the Test & Measurement industry. The unique engagement mechanism contains built-in lubrication and spring-loaded locking tabs that guarantee a reliable connection test after test. The iCon receiver is designed to be PCB compatible.

User Manual

Video

Receiver

  • 310123101
    Receiver, iCon, with Protective Cover
    310123103
    Receiver, iCon, Reverse Module Configuration for iCon ITA Modules, with Protective Cover

ITA

  • 410123101
    ITA, iCon, with Protective Cover
    410123102

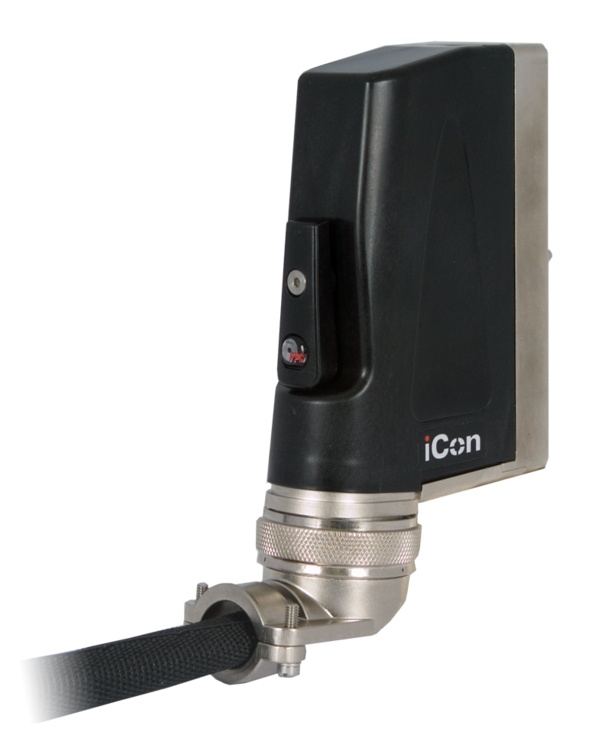

    ITA, iCon, EMI-Shielded, with Threaded Coupling Adapter and Protective Cover
    410123115
    ITA, iCon, Extended Cable Clamp
    410123232

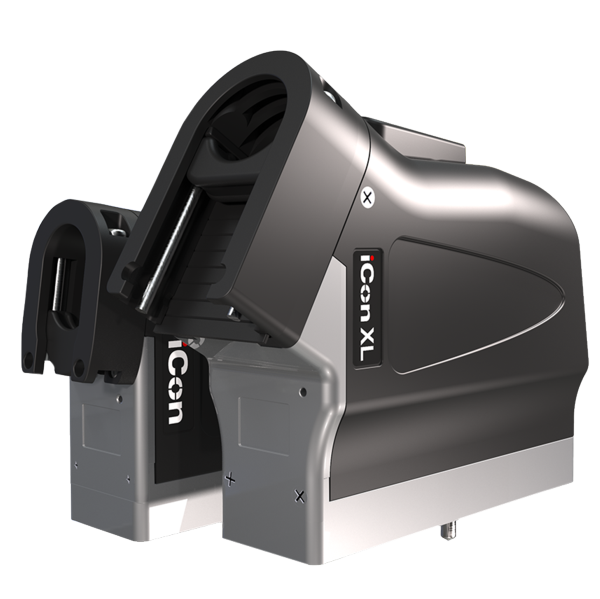

    ITA, iCon XL, Extra-Large Backshell and Clamp, EMI

Protective Cover

  • 310113460
    Replacement Protective Cover, iCon, Receiver
    410112750
    Replacement Protective Cover, iCon, ITA

Module - iCon/i1 Receiver

  • 510160101
    Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
    510160102
    Signal / Mini Power/ Mini Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/8 Position
    510160103
    Signal/ Mini Power/Mini Coax, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160104
    Mini Power/Mini Coax, Module, Receiver, iCon Series, 24 Position
    510160105
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts
    510160106
    Micro Power/ Micro Coax, Module, Receiver, iCon Series, 40 Positions
    510160107
    Signal/ Micro Power/Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Positions,  for crimp contacts
    510160108
    Signal, Module, Receiver, TriPaddle, iCon Series, 96 Position
    510160109
    Signal / Twinax, Module, Receiver, TriPaddle, iCon Series,  40/4 Position
    510160110
    Thermocouple, Module, Receiver, iCon Series, 96 Position
    510160111
    Signal / Micro Power/ Micro Coax, Module, Receiver, TriPaddle, iCon Series, 24/30 Position
    510160112
    Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts
    510160113
    Signal/Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position, loaded w/ twin female contacts & round posts
    510160114
    Coax/20-26 GHz/ 75 Ohm HD, Module, Receiver, iCon Series, 18 Position
    510160115
    Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160122
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ Twin Female Contacts and Round Posts
    510160124
    Signal / High Power, Module, Receiver, TriPaddle, iCon Series, 4/4 Position
    510160129
    Micro Coax, Module, Receiver, iCon, 40 Pos, Fully Loaded
    510160130
    VTAC, Module, Receiver, iCon Series, 128 Pos, 16 Slot

Module - iCon/i1 ITA

  • 510161101
    Signal, Module, ITA,  QuadraPaddle, iCon Series, 160 Position
    510161102
    Signal / Mini Power/ Mini Coax, Module, ITA, QuadraPaddle, iCon Series, 100/8 Position
    510161103
    Signal / Mini Power/ Mini Coax, Module, ITA, TriPaddle, iCon Series, 64/8 Position
    510161104
    Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
    510161106
    Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position
    510161107
    Signal / Micro Power/ Micro Coax, Module, ITA, QuadraPaddle, iCon Series, 100/15 Position
    510161108
    Signal, Module, ITA, TriPaddle, iCon Series, 96 Position
    510161109
    Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position
    510161110
    Thermocouple, Module, ITA, iCon Series, 96 Position
    510161111
    Signal/ Micro Power/ Micro Coax, Module, ITA, TriPaddle, iCon Series,  24/30 Position
    510161114
    20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon Series, 18 Position
    510161115
    Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position
    510161124
    Signal / High Power, Module, ITA, TriPaddle, iCon Series, 4/4 Position
    510161130
    VTAC, Module, ITA, iCon Series, 128 Pos, 16 Slot

Module - Blank

  • 510160100
    Blank, Module,  Receiver/ITA, iCon and i1

Mounting Panel

  • 310113301
    Fixed Mounting Panel, iCon, 4U, 8 Positions, Painted Gray
    310113302
    Fixed Mounting Panel, iCon, 4U, 8 Positions, Black Anodized
    310113488
    Fixed Mounting Frame, iCon, 1U, 2 Positions, Black Anodized
    310113491
    Fixed Mounting Frame, iCon, 1U, 2 Positions, Painted Gray
    310113540
    Mounting Panel, iCon, 6U, 4 Positions, with Slide Mounting (slide kit required)

Vertical Hinged Mounting Frame

  • 310113463
    Vertical Hinged Mounting Frame, iCon, 5U, 3 Positions

Strain Relief Plate

  • 310113456
    Strain Relief Plate, Receiver, iCon
    310113531
    Strain Relief Plate, Receiver/ITA, i1/D1
    310113582
    Strain Relief Stand-off Kit, iCon, Receiver

Keying Pin Kit

  • 310113461
    Keying Pin Kit, iSeries, Receiver and ITA

Accessory

  • 310113467
    Cover Plate, iCon, for Mounting Panel Cutouts, Painted Gray
    310113490
    Cover Plate, iCon, for Mounting Panel Cutouts, Painted Black
    310113635
    Mounting Panel Kit, iCon, Receiver, 6 Position

Backshell

  • 310113794
    Backshell, iCon, Receiver, with Large Cable Clamp
