i1 XL
i1 XL

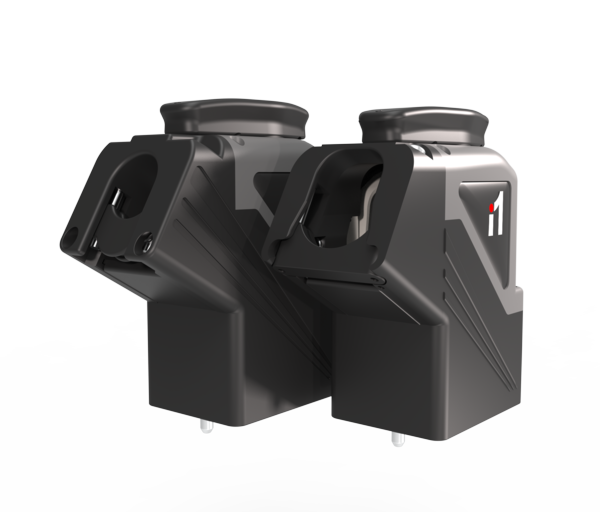

VPC's i1 XL connector features all of the same benefits as the i1 with capabilities for high-speed and high-power applications.
- XL-sized backshells offer larger cable exits & increased bend radius
- Accommodates larger wire bundles, including high-speed and twisted pair
- Mating face remains compatible with standard receivers
- Slide-off backshells allow easy access to wiring for maintenance and probing

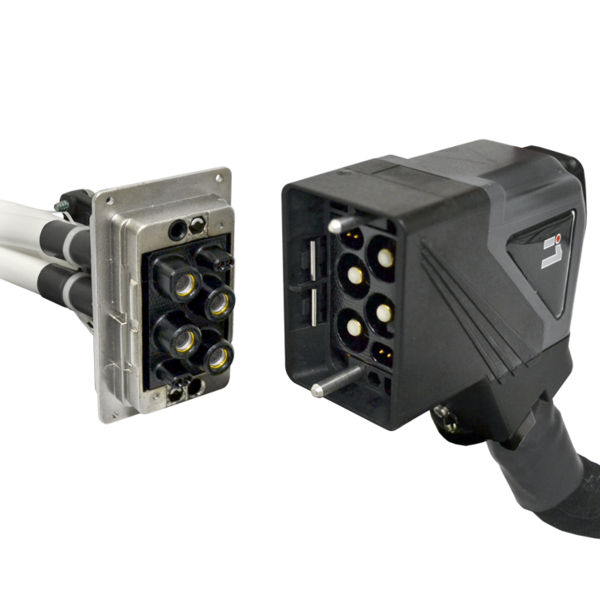

i1 XL High Capabilities
VPC's i1 XL offers features that make it ideal for high power or high-speed applications
- Specifically designed VPC contacts are rated to 150 Amps continuous
- iCon modules can be wired for a safety interlock with use of our TriPaddle contacts
- Contacts tested & designed for use with 2 AWG Cooner wire CW6044-14 (UL-Rated), AS105-14 (Non-UL) or equivalent
- Compatible with SIM iCon modules supporting VTAC inserts offering 12.5+ Gbps per differential pair

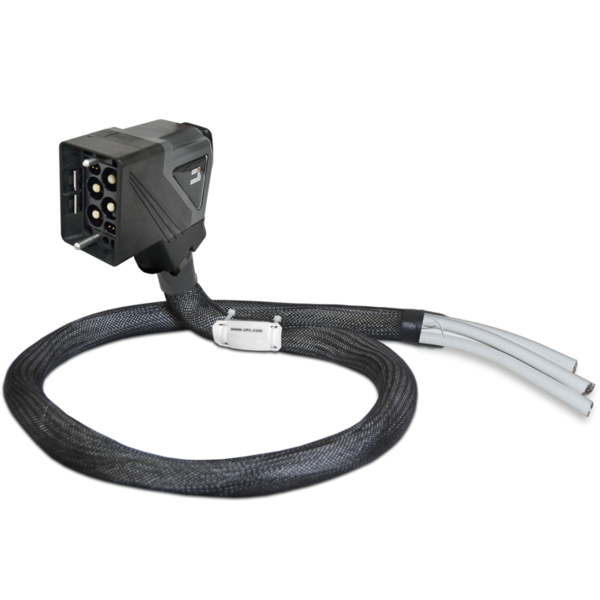

i1 XL Flying Leads
Flying leads ITA cable assemblies enable pin-your-own configuration flexibility.
- Hybrid assembly allows combination of signal, coax, power, high-speed, thermocouple, fiber optic, or pneumatic transmission types
- i1 XL flying leads offer up to 160 QuadraPaddle signal points
Visit VPC's High Power and High-Speed contact pages to learn more about VPC's offerings.
For more information, contact a Field Application Engineer.
