i2 Micro iCon

i2 Micro iCon

The i2 Micro iCon is VPC's slim-line, low I/O connector with capabilities for discrete-wiring, horizontal and right-angle PCB mounting. Because of its 0.8" profile, high-density with PCB connection capability and tested reliability, the i2 connector allows manufactures to create custom, configurable test systems with off-the-shelf components and standard test interfaces.

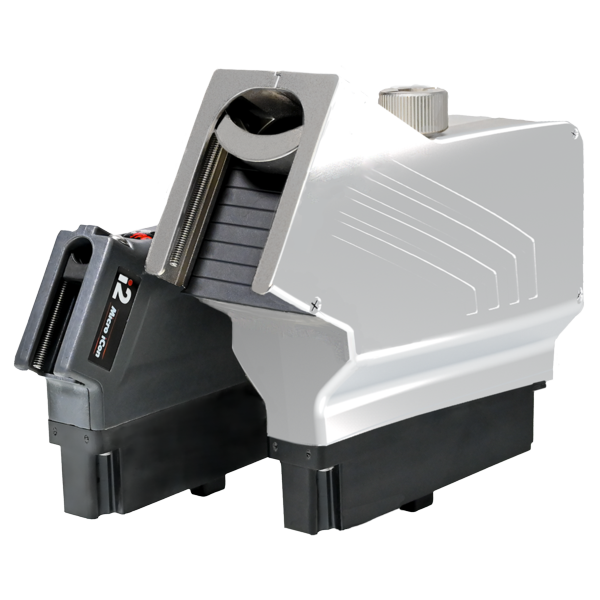

i2 Micro iCon XL Extra Capabilities

VPC's i2 Micro XL connector features all of the same benefits as the i2 Micro iCon with capabilities for larger wire bundles.

  • XL-sized backshells offer larger cable exits & increased bend radius
  • Accommodates larger wire bundles, including twisted pair
  • Mating face remains compatible with standard receivers
  • Slide-off backshells allow easy access to wiring for maintenance and probing

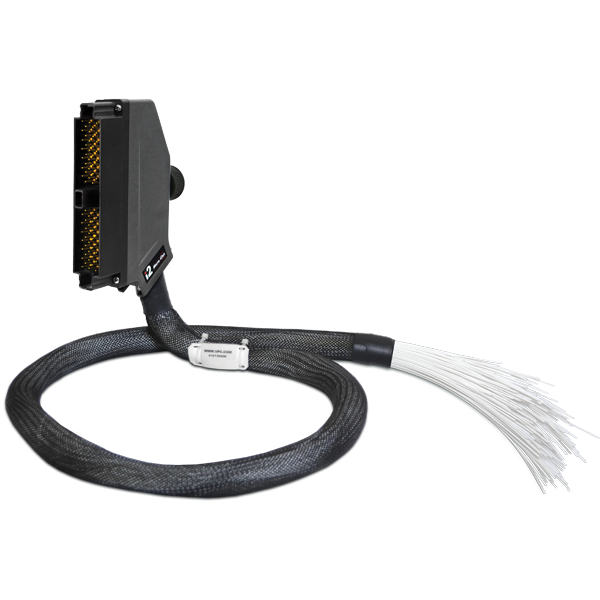

i2 Micro iCon Flying Leads

Flying leads ITA cable assemblies enable pin-your-own configuration flexibility.

  • Hybrid assembly allows combination of signal, coax, power, high speed, thermocouple, fiber optic, and pneumatic transmission types
  • i2 Micro iCon flying leads offer up to 168 QuadraPaddle signal points

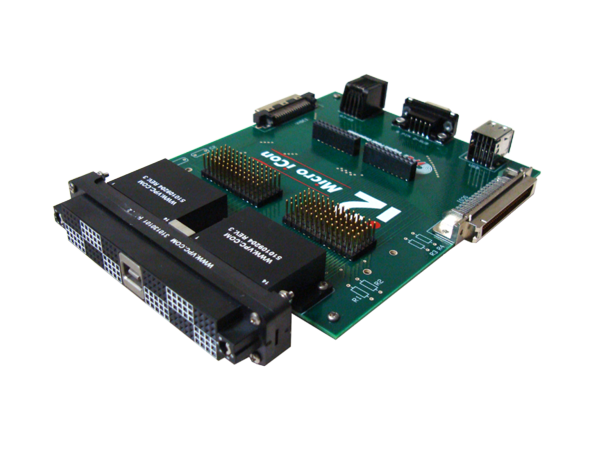

i2 Micro iCon PCB Compatibility

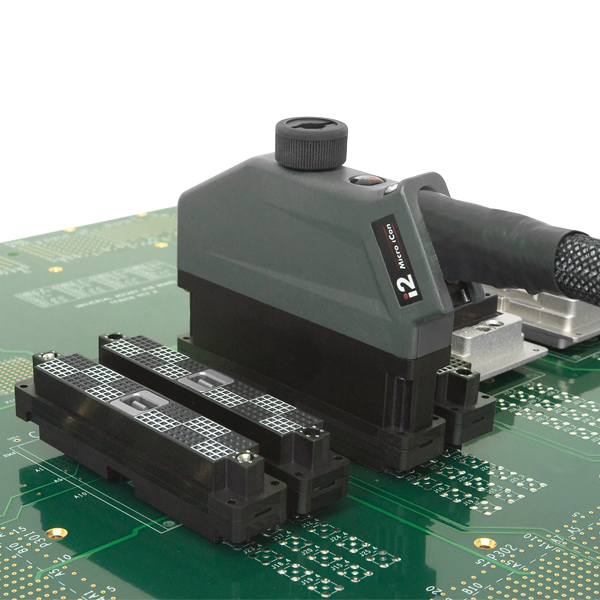

The i2 Micro iCon offers horizontal mounting with the use of stake pins and right-angle wire to board connections with VPC headers. Using twin female QuadraPaddle contacts the i2 Micro iCon receiver can be connected directly to male headers on PCB.

  • 60 or 84 pin male headers offer solderless compliant pins for easy PCB implementation
  • Innovative header easily adapts i2 for quick termination to connectors such as VHDCI and 68 pin SCSI
  • Mounting bracket available to secure PCB to i2 Micro receiver



User Manual

Contacts & Patchcords

VPC offers a wide array of contacts with a variety of connection options that are configurable for virtually any interconnect requirement.

Range of transmission types: Signal, coax, power, high speed, thermocouple, fiber optic, and pneumatic

Click here to try our Patchcord Designer.

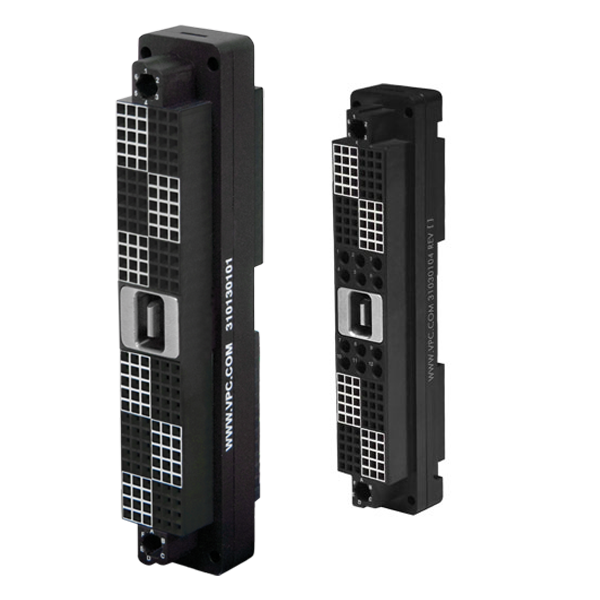

i2 MX Modules

  • VPC offers the 168 position i2 Micro module supporting both Twin Female and Crimp QuadraPaddle contacts for PCB and wired applications



  • The i2 Micro iCon hybrid I/O module includes 120 QuadraPaddle positions and flexible option of 12 Micro coax or Micro power contact positions



Receiver

  • 310130101
    Receiver, i2 Micro iCon, 168 Position, Loaded w/ Twin Female QuadraPaddle Contacts
    310130102
    Receiver, i2 Micro iCon, 168 Position, for Crimp Contacts
    310130104
    Receiver, i2 Micro iCon, 120/12 Position Hybrid, Loaded w/ Twin Female QuadraPaddle Contacts
    310130105
    Receiver, i2 Micro iCon, 120/12 Position Hybrid, for Crimp Contacts
    310130107
    Receiver, i2 Micro iCon, 168 Position, Unloaded, for Twin Female QuadraPaddle Contacts

ITA

  • 410130101
    ITA, i2 Micro iCon, 168 Position
    410130104
    ITA, i2 Micro iCon, 120 QuadraPaddle/12 Micro Power or Micro Coax Position Hybrid
    410130106
    ITA, i2 Micro iCon, 168 Position, XL Backshell (XL Bend Radius and Cable Exit)
    410130115
    ITA, i2 Micro iCon, 120 QuadraPaddle/12 Micro Power or Micro Coax, XL Backshell (XL Bend Radius and Cable Exit)

Protective Cover

  • 310113552
    Protective Cover Accessory, Beaded Chain Kit
    310113667
    Protective Cover, i2 MX and i2 Micro iCon, Receiver, EMI-Shielded
    410113208
    Protective Cover, i2 MX and i2 Micro iCon, ITA, EMI-Shielded

Mounting Panel

  • 310113586
    Mounting Panel, i2 Micro iCon, 6U, 6 Positions, with Slide Mounting (slide kit required)
    310113607
    Cover Plate, i2 Micro iCon, for Mounting Panel Cutouts, Painted Gray

Cable Assembly- ITA

  • 410130409
    Cable Assembly, ITA, 36", i2 Micro iCon, QuadraPaddle,  Flying Leads

Keying Pin Kit

  • 310113461
    Keying Pin Kit, iSeries, Receiver and ITA

Accessory

  • 310113562
    Bracket, i2 Micro iCon, Receiver, for PCB Mounting
    510109204
    Header, i2 Micro iCon, Receiver, 84 Pin, for PCB Mounting
    510109206
    Header, i2 Micro iCon, Receiver, 60 Pin, for PCB Mounting

Strain Relief Plate

  • 310113559
    Strain Relief Plate, Receiver, i2 Micro iCon
