PCB Mountable Receivers & Modules

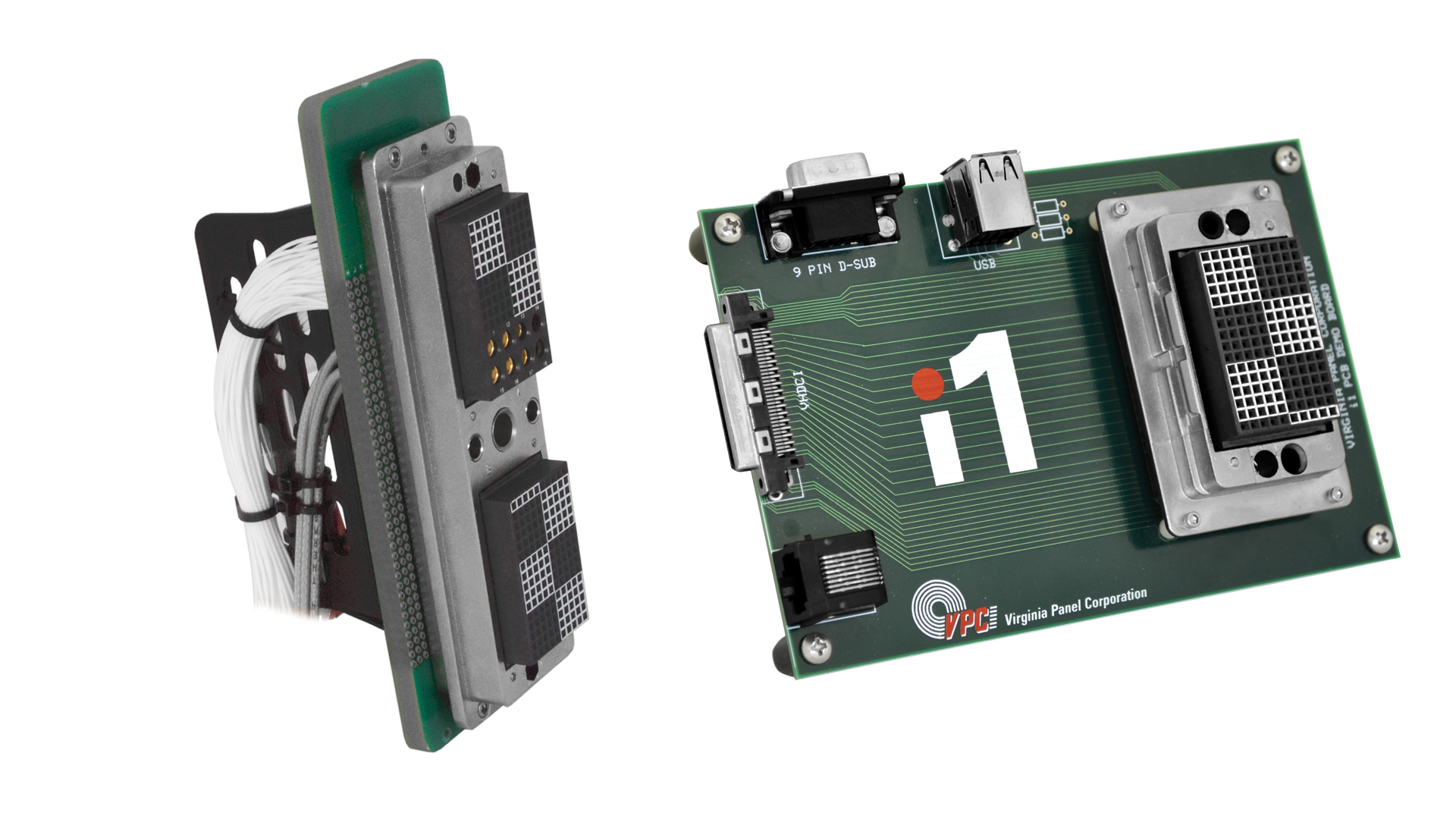

The iCon/i1 receiver offers wire to board connections in multiple configurations. Using twin female QuadraPaddle contacts, the iCon receiver can be connected directly to male headers on a PCB. VPC's adapter pins can also be used to connect directly to female headers or ribbon cable connectors.

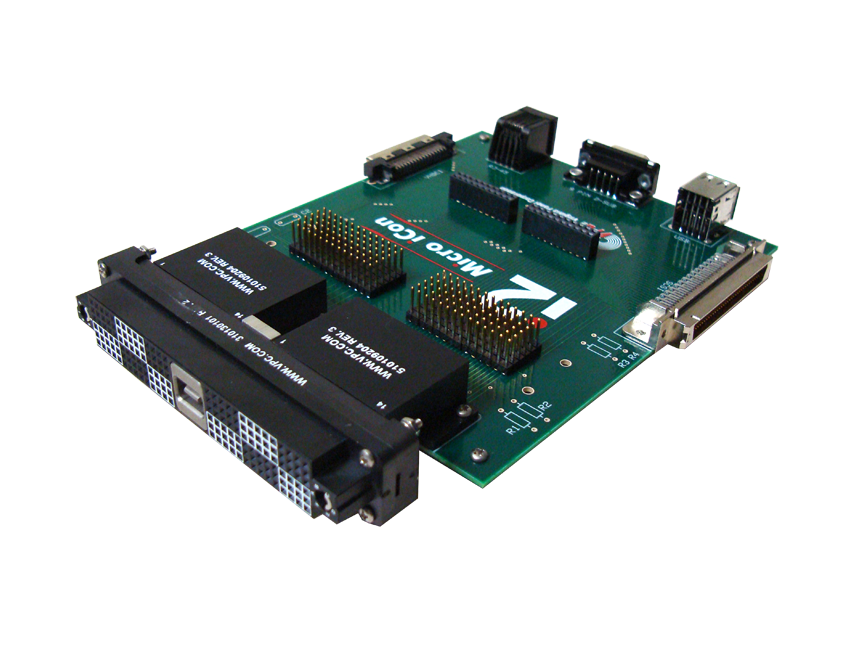

I2 MICRO ICON PCB Capabilities
i2 Micro iCon offers PCB mounting in several options. Right angle solderless compliant headers enable connection to PCB adapters and twin male standard headers enable direct PCB connection.

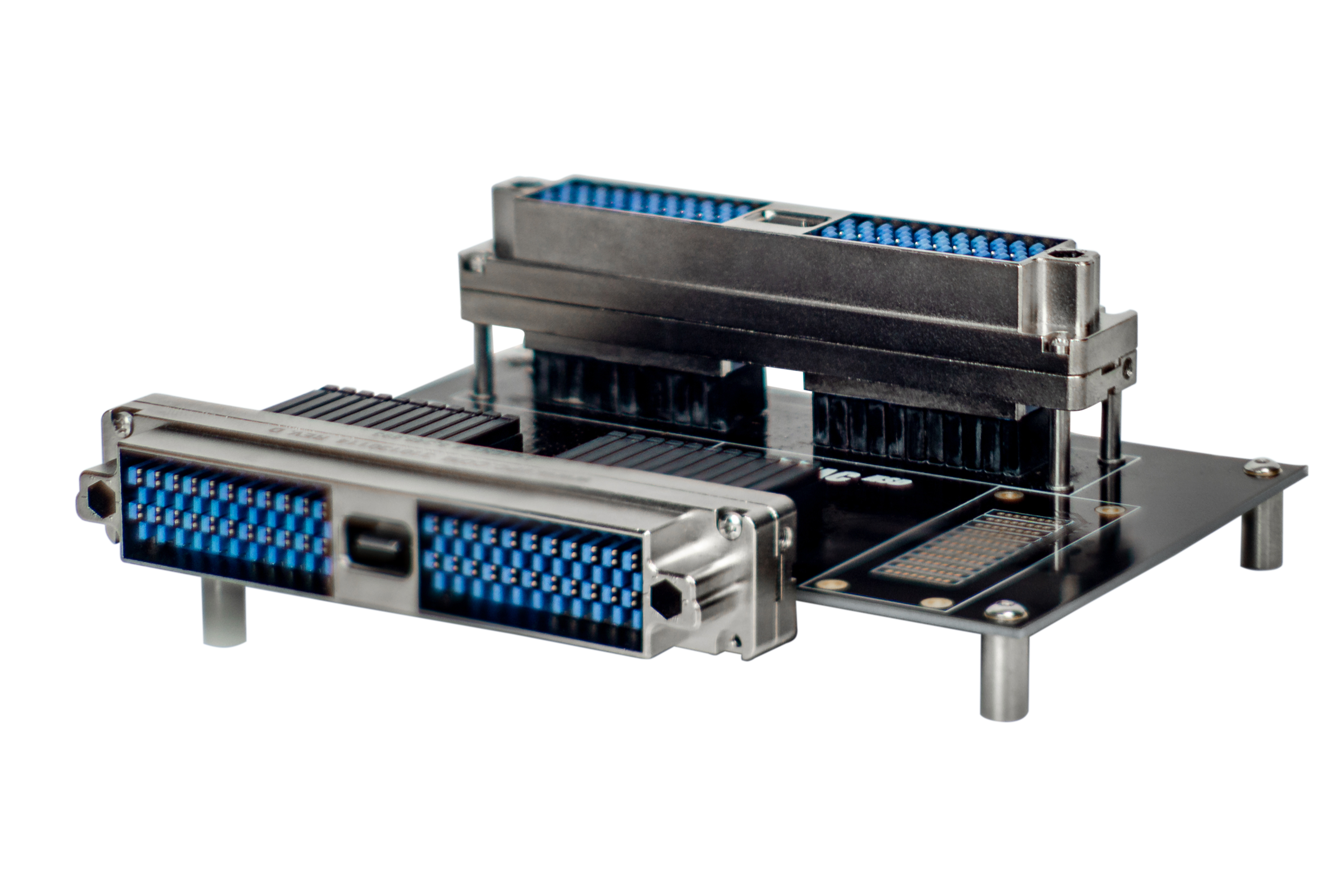

i2 MX offers PCB mounting in several options. VPC VTAC vertical headers allow for i2 MX modules to be mounted directly serving as a pass-thru module preserving PCB connections similarly to our Infinity Connector. Right angle inserts provide a high-speed data connection to a PCB at 10+ Gbps.
.png)

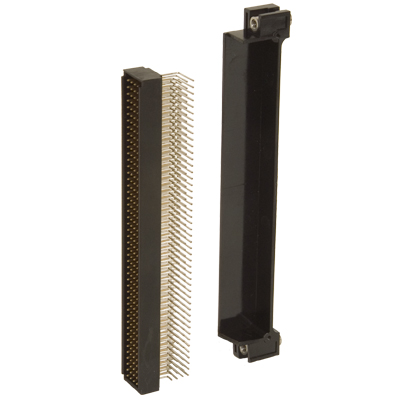

Right Angle Contact Modules
Right angle contact modules allow you to mount VPC's 64 & 96 position TriPaddle, 192 position QuadraPaddle or 19 position Mini Coaxial module to virtually any custom PCB. This provides versatility when test requirements exceed our COTS PCB adapters. VPC offers right angle PCB solutions for both ITA and Receiver sides offering maximum customization capability.
