CASS



CASS Receivers and ITAs

  • The Consolidated Automated Support System (CASS) is the Navy's ATE standard for testing requirements. Designed to solve problems of unreliability, rapid obsolescence and difficult logistics support, CASS incorporates modularity and flexibility to allow expansion for testing both current and future technologies.

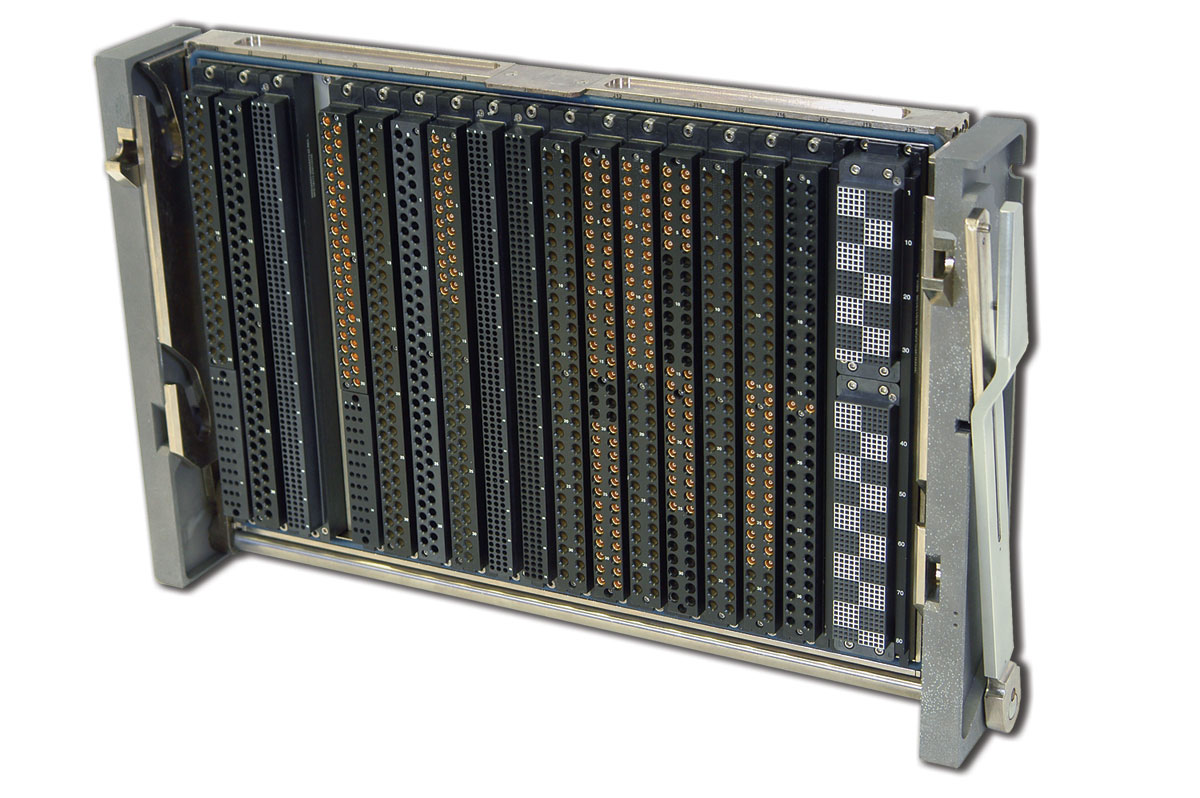

  • The CASS receiver is a single engaging mechanism with 19 modular positions that accepts a single tier interface device.

Connector Modules

  • Modules are available in various configurations to meet specific testing needs. All modules are molded from an engineered resin that will withstand temperatures up to 220°C.
  • VPC's QuadraPaddle technology offers unmatched high-density performance for 80 Series platform digital I/O requirements.

Browse By Standard

CASS Enclosure

  • 410112257
    Enclosure, CASS, 19 Positions
    410112341
    Enclosure, CASS, 19 Positions, Deep Drawn
    410112392
    Enclosure, CASS, 19 Positions

Contact - ITA

  • 610103115
    Mini Coax, Contact, ITA, RG316
    610103129
    Mini Coax, Contact, ITA, two .025" Square Wire Wrap Posts
    610103130
    Mini Coax, Contact, ITA, RG178
    610103135
    Mini Coax, Contact, ITA, one .025" Square Wire Wrap Post
    610103140
    Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
    610103150
    Mini Coax, Contact, ITA, one .025" Round Post/ one .02" Square Post/ .075" Spacing
    610103153
    Mini Coax, Contact, ITA, one .025" Square Wire Wrap Post
    610103157
    Mini Coax, Contact, ITA, RG178
    610103158
    Mini Coax, Contact, ITA, RG316 & 178, Solder Sleeve
    610103159
    Mini Coax, Contact, ITA, RG316
    610103166
    Mini Coax, Contact, ITA, 24 AWG
    610110108
    Signal, Contact, ITA,TriPaddle,7 Amp, 20-24 AWG
    610110113
    Signal, Contact, ITA, TriPaddle, 7 Amp, .025" Square Post for Wire Wrap
    610110129
    Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
    610110145
    Signal, Contact, ITA, TriPaddle, 7 Amp, .025" Square Post for Wire Wrap
    610110146
    Signal, Contact, ITA, TriPaddle, 7 Amp, 20-24 AWG, Crimp/Solder
    610110147
    Signal, Contact, ITA, TriPaddle, 10 Amp, 14 AWG
    610110169
    Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG
    610115124
    Mini Power, Contact, ITA, 65 Amp, 8 AWG
    610138109
    Signal, Contact, ITA, QuadraPaddle, 5 Amp, 22-24 AWG
    610138112
    Signal, Contact, ITA, QuadraPaddle, 5 Amp, 26-30 AWG
    610138115
    Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Round Post

Contact - Receiver

  • 610104114
    Mini Coax, Contact, Receiver, RG316*
    610104140
    Mini Coax, Contact, Receiver, two .025" Square Wire Wrap Posts
    610104141
    Mini Coax, Contact, Receiver, RG178
    610104142
    Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
    610110101
    Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp only
    610110125
    Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp/Solder
    610110128
    Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
    610110167
    Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
    610116112
    Mini Power, Contact, Receiver, 65 Amp, 8 AWG
    610138100
    Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

ID

  • 410113101
    ID, CASS, 19 Module, Single Tier
    410113105
    ID, CASS, 19 Module, Single Tier, Commercial
    410113111
    ID, CASS, 19 Module, Single Tier, Extended
    410113117
    ID, CASS, 19 Module, Single Tier, 2.75" Deep Drawn Frame

Module - 90 Series ITA

  • 510114106
    Signal, Module, ID, CASS, 210 Position, Discrete Wiring
    510114107
    Signal, Module, ID, CASS, 76 Position, Discrete Wiring
    510114108
    Signal, Module, ID, CASS, 64 Position, Discrete Wiring
    510114109
    Signal, Module, ID, CASS, 64 Position, Center PCB Mount
    510114122
    Signal, Module, ID, CASS, 210 Position, P4
    510114131
    Signal, Module, ID, CASS, QuadraPaddle, 800 Position

Module - 90 Series Receiver

  • 510113120
    Power, Module, Receiver, CASS, 76 Position
    510113121
    Coax, Module, Receiver, CASS, 64 Position, Discrete Wiring or Side PCB
    510113122
    Coax, Module, Receiver, CASS, 64 Position, Center PCB Mount
    510113124
    Signal, Module, Receiver, CASS, 210 Position, Right Angle PCB Mount
    510113125
    Signal, Module, Receiver, CASS, 210 Position, Discrete Wiring
    510113133
    Signal, Module, Receiver, CASS, 210 Position, J4, Right Angle PCB Mount
    510113138
    Signal, Module, Receiver, CASS, QuadraPaddle, 800 Position
    510113140
    Module, Receiver, RTCASS, Signal, 210 Position Right Angle PCB Mount for J4
    510113141
    Module, Receiver, RTCASS, Power, 40/36 Position
    510113142
    Module, Receiver, RTCASS, Coaxial, 64 Position, Discrete Wiring or Side PCB Mount
    510113143
    Module, Receiver, RTCASS, Coax, 64 Position, Center PCB Mount
    510113144
    Module, Receiver, RTCASS, Signal, 210 Position Right Angle PCB Mount
    510113146
    Module, Receiver, RTCASS, Signal, 210 Position, Discrete Wiring
    510113151
    Module, Receiver, CASS, Signal, 800 Position, QuadraPaddle

Module - Blank

  • 510113145
    Blank Module, Receiver or ID, RTCASS

Protective Cover

  • 310113242
    Protective Cover, CASS, Receiver, (for P/N 310115101/103/116/119)
    410112258
    Protective Cover, CASS, ID

Receiver

  • 310115101
    Receiver, CASS, 19 Position, Single Tier
    310115103
    Receiver, CASS, 19 Position, Single Tier, Commercial
    310115116
    Receiver, CASS, 19 Position, Single Tier, Lightweight
    310115119
    Receiver, RTCASS, 19 Position, Single Tier, Lightweight

Tool- Crimp

  • 910101102
    Tool, Crimp, TriPaddle (10 amp), Thermocouple, Micro Power, Receiver and ITA , Locator Required
    910101103
    Tool, Crimp, QuadraPaddle and TriPaddle,  Receiver and ITA, Locator Required
    910101115
    Tool, Crimp, Mini Coax, RG316 and RG178
    910105110
    Tool, Crimp for Captive

Tool- Crimp Die

  • 910104126
    Tool, Crimp Die,  Mini Coax, RG316 and RG178, with Locator

Tool- Extraction

  • 910110102
    Tool, Extraction, TriPaddle and Thermocouple, Receiver and ITA
    910110111
    Tool, Extraction, QuadraPaddle, ITA
    910112104
    Tool, Extraction, Mini Power and Mini Coax, Receiver and ITA

Tool- Kit

  • 910121144
    Tool, Holding Fixture Kit, f/ Mini Coax w/ Solder Sleeve

Tool- Locator

  • 910104107
    Tool, Locator, TriPaddle, ITA
    910104118
    Tool, Locator, TriPaddle, ITA
    910104127
    Tool, Locator, TriPaddle, Receiver
    910104128
    Tool, Locator, Mini Coax, 22-26 AWG Wire
    910104140
    Tool, Locator, QuadraPaddle, ITA

Tool- Misc

  • 910121149
    Tool,  Adapter,  Holding Fixture Adapter AT-1319-29
    910121156
    Tool, Inspection Depth Gauge, Mini Coax, Receiver
    910121157
    Tool, Inspection Depth Gauge, Mini Coax, ITA

Vertical Hinged Mounting Frame

  • 310113211
    Vertical Hinged Mounting Frame, CASS (for P/N 310115101/116/119)
