PCB Mountable Receivers & Modules



iCon

The iCon receiver offers wire to board connections in multiple configurations. Using twin female QuadraPaddle contacts, the iCon receiver can be connected directly to male headers on a PCB. VPC's adapter pins can also be used to connect directly to female headers or ribbon cable connectors.

ICON

i1

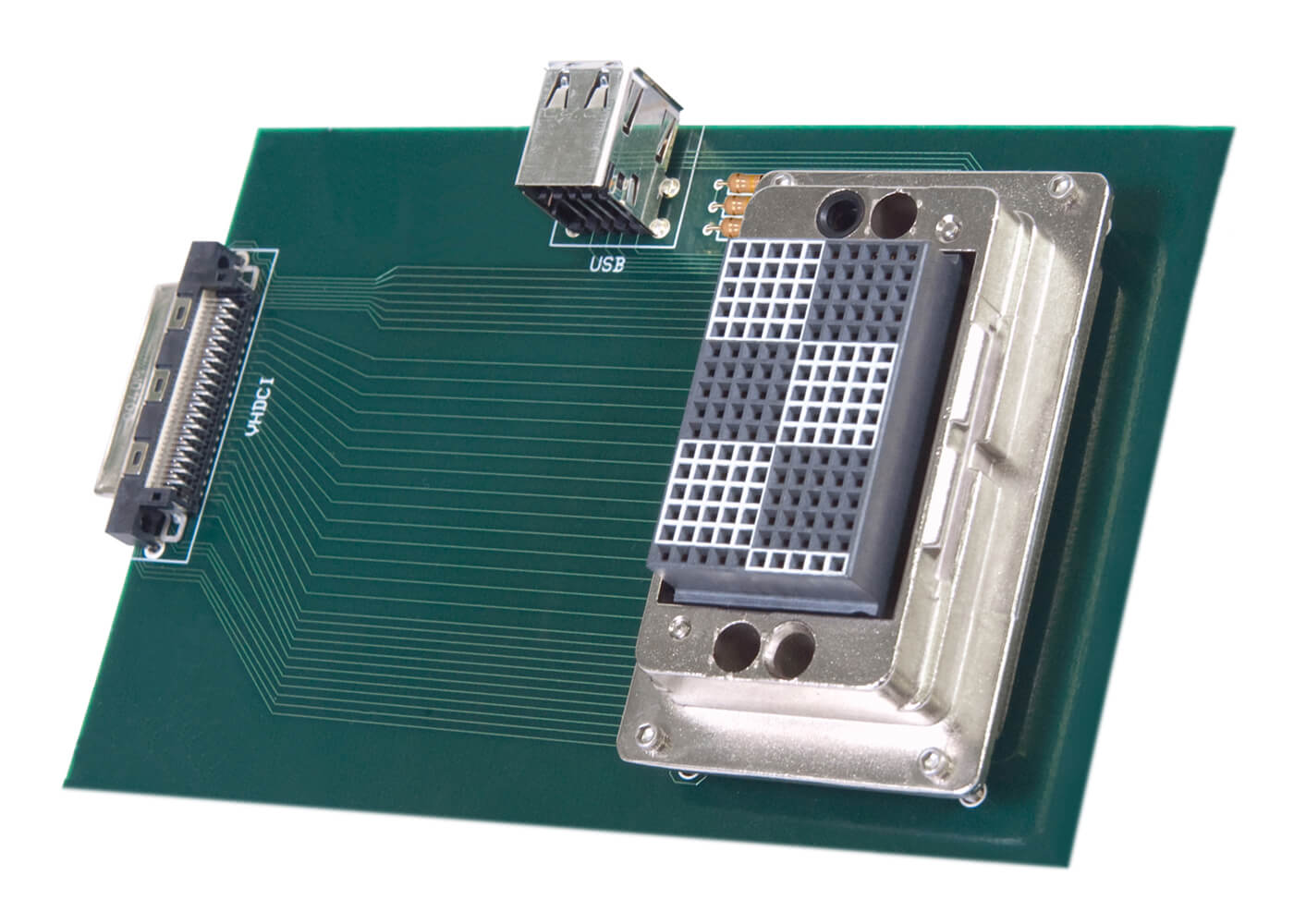

The i1 Receiver offers wire to board connections with multiple configurations. Using twin female QuadraPaddle contacts, the i1 Receiver can be connected directly to male headers on a PCB. VPC's adapter pins can also be used to connect directly to female headers or ribbon cable connectors.

i1

i2 Micro iCon

i2 Micro iCon offers PCB mounting in several options. Right angle solderless compliant headers enable connection to PCB adapters and twin male standard headers enable direct PCB connection.

I2

Right Angle Contact Modules

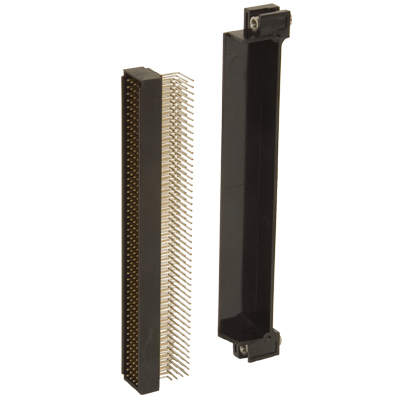

Right angle contact modules allow you to mount VPC's 64 & 96 position TriPaddle, 192 position QuadraPaddle or 19 position Mini Coaxial module to virtually any custom PCB. This provides versatility when test requirements exceed our COTS PCB adapters. VPC offers right angle PCB solutions for both ITA and Receiver sides offering maximum customization capability.


Accessory

  • Bracket, i2 Micro iCon, Receiver, for PCB Mounting
    Header, i2 Micro iCon, Receiver, 84 Pin, for PCB Mounting
    Header, i2 Micro iCon, Receiver, 60 Pin, for PCB Mounting

Contact - Receiver

  • Mini Coax, Contact, Receiver, Right Angle for PCB Mounting For use with VPC Module 510104319
    Signal, Contact, Receiver, TriPaddle, 5 Amp, .025" Round Post
    Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Round Post (Adapter Pin)
    Micro Power, Contact, Receiver, 21 Amp, PCB Mount

Module - 90 Series ITA

  • Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    Header/Shroud Right Angle Kit, ITA, 90 Series, QuadraPaddle, for Custom PCB Mounting
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB Mounting

Module - 90 Series Receiver

  • Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    Signal Module, Receiver, QuadraPaddle, 192 Position, Right Angle Contact Kit for Custom PCB Mounting

Module - iCon/i1 Receiver

  • Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts
    Micro Power/ Micro Coax, Module, Receiver, iCon Series, 40 Positions
    Signal, Module, Receiver, TriPaddle, iCon Series, 96 Position
    Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts
    Signal/Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position, loaded w/ twin female contacts & round posts

Receiver

  • Receiver, iCon, with Protective Cover
    Receiver, i1, with Protective Cover
    Receiver, i2 Micro iCon, 168 Position, Loaded w/ Twin Female QuadraPaddle Contacts
    Receiver, i2 Micro iCon, 120/12 Position Hybrid, Loaded w/ Twin Female QuadraPaddle Contacts

Strain Relief Plate

  • Strain Relief Plate, Receiver, iCon
