G6x

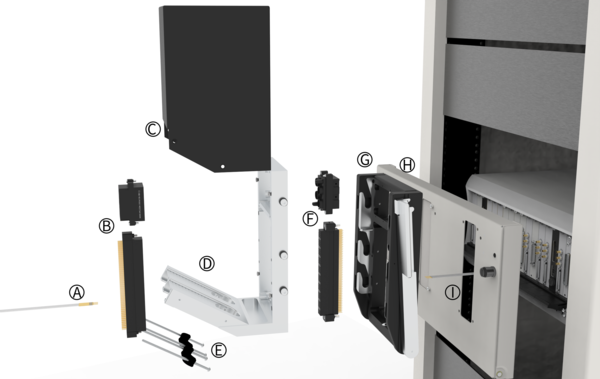

G6x Exploded View

A. ITA Patchcords B. ITA Modules C. ITA Removable Cover
D. ITA Frame E. Cable Clamps F. Receiver Modules
G. Receiver Frame H. Vertical Mounting Frame I. Receiver Patchcords

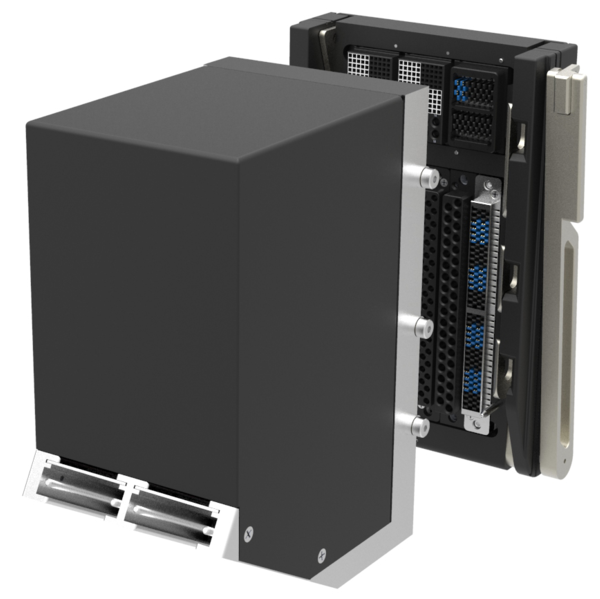

G6x

This 9-Module Solution provides versatility in the same small footprint as the G6. This high-density Interconnect can simultaneously engage up to 1,920 signal contacts. The ability to add 3 iCon series modules into the interface design provides up to 25% more I/O. The ITA has a unique, removable EMI shielded cover which allows easy access to modules and contacts.

Receiver

  • 310104481
    Receiver, G6x, 9 Module

ITA

  • 410104273
    ITA, G6, 6 Module, w/ EMI backshell, Front Protective Cover
    410104331
    ITA, G6, 6 Module
    410104732
    ITA, G6, 6 Module, Oversized Backshell
    410104769
    ITA, G6x, 9 Module, Removable Backshell

Protective Cover

  • 310113737
    Protective Cover, G6x, Receiver
    410114346
    Protective Cover, G6x, ITA

Module - iCon/i1 Receiver

  • 510160101
    Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
    510160102
    Signal / Mini Power/ Mini Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/8 Position
    510160103
    Signal/ Mini Power/Mini Coax, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160104
    Mini Power/Mini Coax, Module, Receiver, iCon Series, 24 Position
    510160105
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts
    510160106
    Micro Power/ Micro Coax, Module, Receiver, iCon Series, 40 Positions
    510160107
    Signal/ Micro Power/Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Positions,  for crimp contacts
    510160108
    Signal, Module, Receiver, TriPaddle, iCon Series, 96 Position
    510160109
    Signal / Twinax, Module, Receiver, TriPaddle, iCon Series,  40/4 Position
    510160111
    Signal / Micro Power/ Micro Coax, Module, Receiver, TriPaddle, iCon Series, 24/30 Position
    510160112
    Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts
    510160113
    Signal/Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position, loaded w/ twin female contacts & round posts
    510160114
    Coax/20-26 GHz/ 75 Ohm HD, Module, Receiver, iCon Series, 18 Position
    510160115
    Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160122
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ Twin Female Contacts and Round Posts
    510160124
    Signal / High Power, Module, Receiver, TriPaddle, iCon Series, 4/4 Position
    510160129
    Micro Coax, Module, Receiver, iCon, 40 Pos, Fully Loaded
    510160130
    VTAC, Module, Receiver, iCon Series, 128 Pos, 16 Slot

Module - iCon/i1 ITA

  • 510161101
    Signal, Module, ITA,  QuadraPaddle, iCon Series, 160 Position
    510161102
    Signal / Mini Power/ Mini Coax, Module, ITA, QuadraPaddle, iCon Series, 100/8 Position
    510161103
    Signal / Mini Power/ Mini Coax, Module, ITA, TriPaddle, iCon Series, 64/8 Position
    510161104
    Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
    510161106
    Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position
    510161107
    Signal / Micro Power/ Micro Coax, Module, ITA, QuadraPaddle, iCon Series, 100/15 Position
    510161108
    Signal, Module, ITA, TriPaddle, iCon Series, 96 Position
    510161109
    Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position
    510161110
    Thermocouple, Module, ITA, iCon Series, 96 Position
    510161111
    Signal/ Micro Power/ Micro Coax, Module, ITA, TriPaddle, iCon Series,  24/30 Position
    510161114
    20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon Series, 18 Position
    510161115
    Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position
    510161124
    Signal / High Power, Module, ITA, TriPaddle, iCon Series, 4/4 Position
    510161130
    VTAC, Module, ITA, iCon Series, 128 Pos, 16 Slot

Module - 90 Series Receiver

  • 510104109
    Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    510104120
    Mini Coax, Module, Receiver, 90 Series, 19 Position
    510104123
    Mini Power, Module, Receiver, 90 Series, 19 Position
    510104133
    Thermocouple, Module, Receiver, 90 Series, 64 Position
    510104134
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position
    510104135
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    510104136
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position
    510104149
    Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
    510104150
    Mini Coax, Module, Receiver, 90 Series, 76 Position
    510104187
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    510104206
    Signal/Mini Power, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104224
    Coax, Module, Receiver, 40 GHz, 90 Series, 8 Position
    510104243
    Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104249
    Coax, Module, Receiver, 75 Ohm, 90 Series, 32 Position
    510104260
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions
    510104266
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions w/ Filter
    510104267
    Micro Power/ Micro Coax, Module, Receiver, 90 Series, 50 Positions
    510104276
    Vacuum-Pneumatic, Module, Receiver, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510104287
    Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
    510104289
    Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
    510104301
    Mini Coax, Module, Receiver, 90 Series, 37 Position
    510104306
    Signal/Micro Coax/Micro Power, Module, Receiver, TriPaddle, 90 Series, 77/8 Position
    510104307
    Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate
    510104319
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    510109315
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    510150115
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
    510150116
    Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
    510150130
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    510150136
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
    510150137
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
    510150147
    Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610 138 200 and 610 138 118)
    510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - 90 Series ITA

  • 510108101
    Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
    510108111
    Mini Coax, Module, ITA, 90 Series, 19 Position
    510108112
    Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    510108115
    Mini Power, Module, ITA, 90 Series, 19 Position
    510108124
    Thermocouple, Module, ITA, 90 Series, 64 Position
    510108125
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    510108126
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position
    510108132
    Mini Coax, Module, ITA, 90 Series, 76 Position
    510108169
    Coax, Module, ITA, 40 GHz, 90 Series, 8 Position
    510108178
    Signal/Mini Power, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108179
    Coax, Module, ITA, 20/26 GHz/ 75 Ohm HD and 75 Ohm, 90 Series, 32 Position
    510108210
    Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108240
    Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position
    510108242
    Vacuum, Module, ITA, 90 Series, 2 Port Positions
    510108245
    Signal/Thermocouple, Module, ITA, TriPaddle , 90 Series, 84/12 Position
    510108251
    Vacuum, Module, ITA, 90 Series, 2 Port Positions, w/ M22.5x1.5 Tap
    510108262
    Micro Power / Micro Coax, Module, ITA, 90 Series, 50 Position
    510108263
    Micro Power/ Micro Coax, Module, ITA, 90 Series, 120 Positions
    510108264
    Vacuum-Pneumatic, Module, ITA, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510108276
    Mini Coax, Module, ITA, 90 Series, 37 Position
    510108278
    Signal/Micro Coax, Module, ITA, TriPaddle, 90 Series, 77/8 Position
    510151105
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
    510151106
    Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
    510151107
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
    510151124
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)
    510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

G6/ G6X Enclosure

  • 410112237
    Enclosure, G6, 2 Cable Clamps, 6" Depth (for ITA p/n  410104331)
    410112401
    Enclosure, G6, Hinged Cover, 4" Depth, No Cable Exits (for ITA p/n 410104331)

Module - Blank

  • 510160100
    Blank, Module,  Receiver/ITA, iCon and i1

SIM Module Right Angle Kit

  • 510170102
    SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    510171102
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)

Strain Relief Plate

  • 510109116
    Strain Relief Plate, Receiver, 90 Series
    510109296
    Strain Relief Plate, ITA, 90 Series
    510109298
    Strain Relief Plate, Receiver, 90 Series
